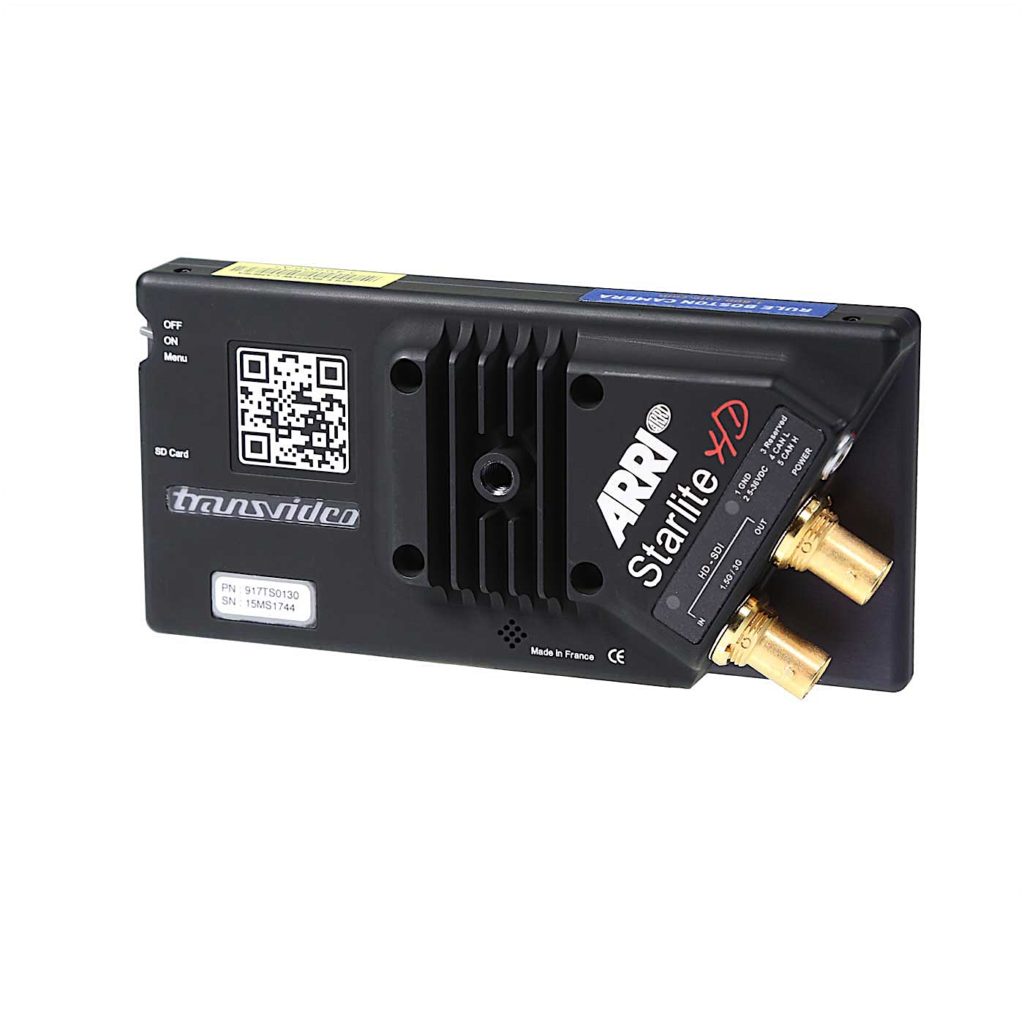

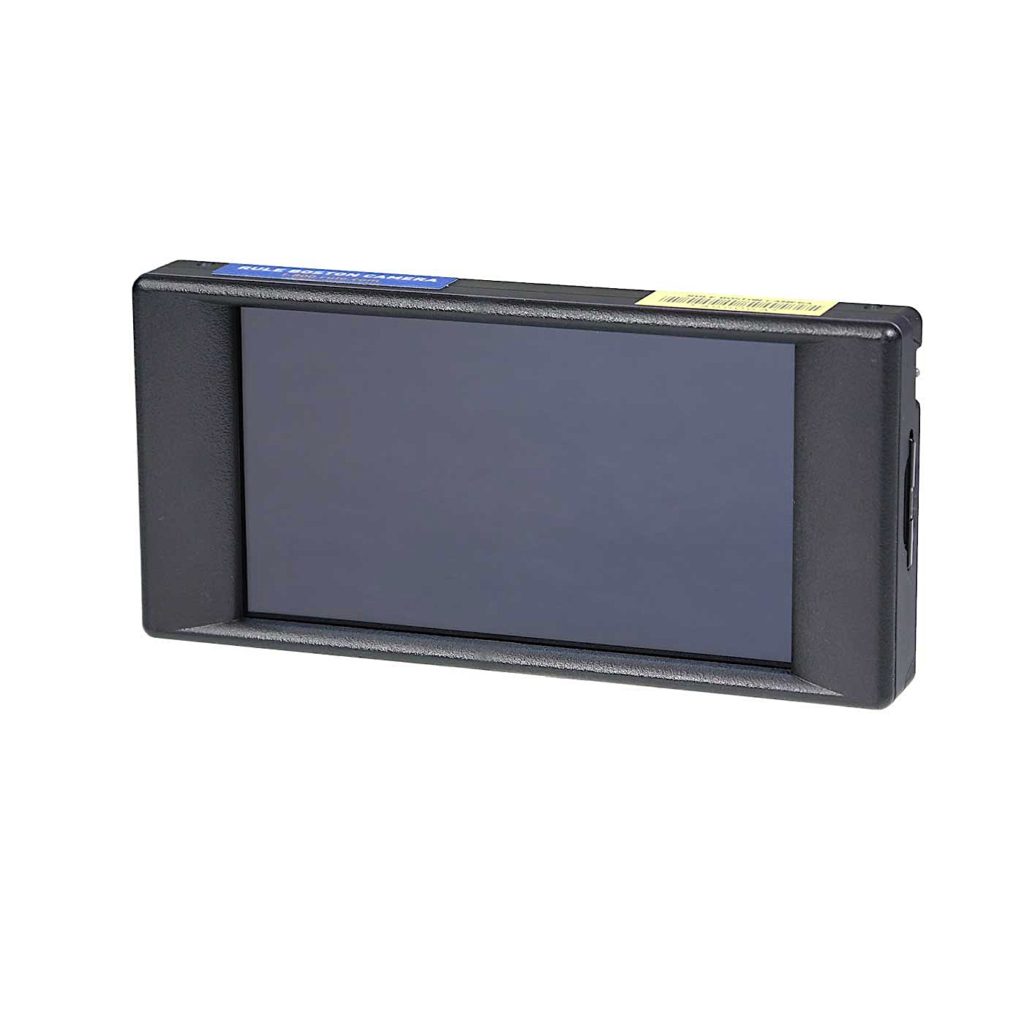

The StarliteHD5-ARRI is a specially adapted version of Transvideo’s StarliteHD 5″ OLED monitor which is able to control key camera functions for the ARRI ALEXA Mini and ARRI AMIRA.

Constructed from aviation-grade aluminum, the rugged StarliteHD5-ARRI monitor is the size of a smartphone and weighs less than 200 g.

The StarliteHD5-ARRI includes waveform, vectorscope and histogram displays, as well as a built-in recorder for H.264 rushes via SD cards.

Inputs & outputs
HD-SDI and 3G-SDI on BNC
Reclocked output on BNC
ESD protection on the input

Power supply
5-36 VDC
Power consumption 6 Watts

Recording Media
SD cards class10 32 Gb maximum

Connector
One Lemo 5 for Power and CAN bus

Display
1280×720 4.7” OLED
