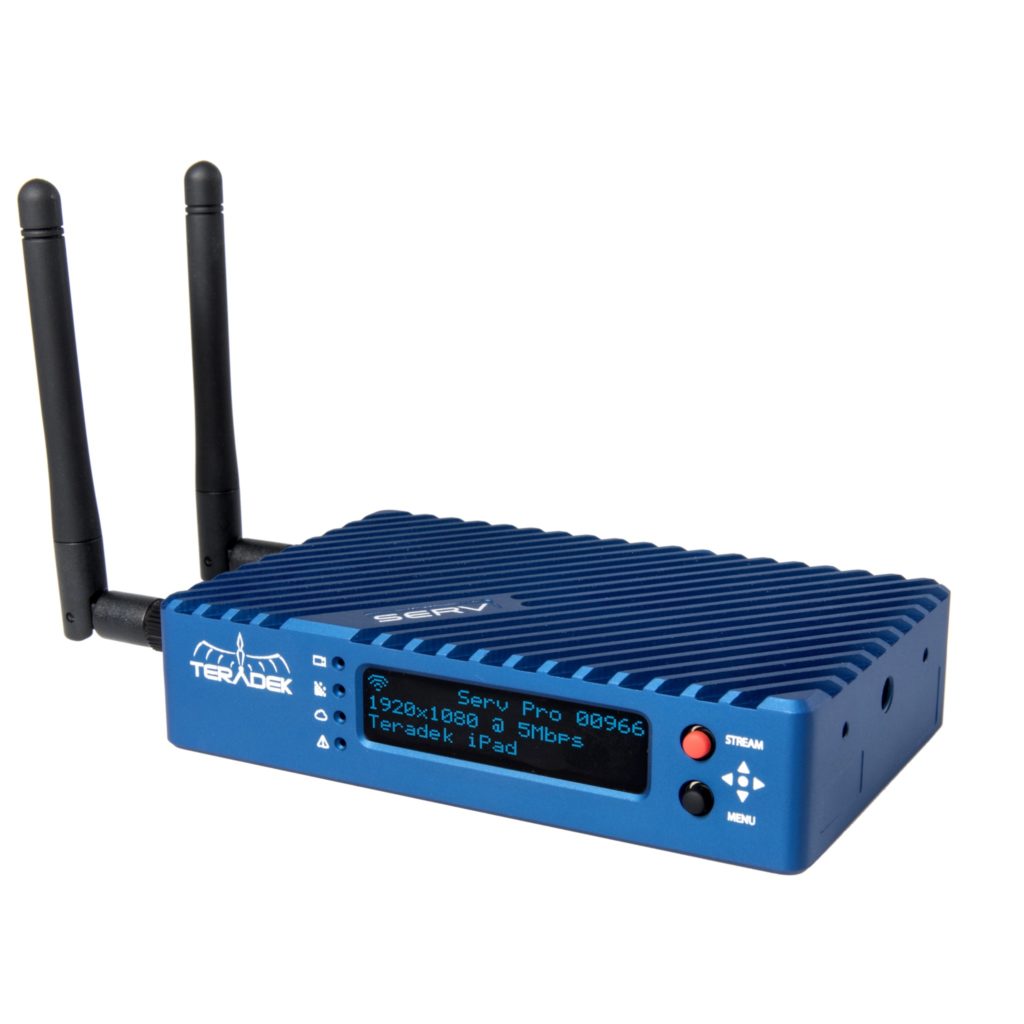

Serv Pro is a hardware streaming device that allows up to 10 iPhones and iPads to monitor a video feed in HD over WiFi. Perfect for script supervisors, hair & makeup, classrooms, and documentary shoots, Serv Pro offers a compelling monitoring alternative to zero delay wireless video systems.

• Stream over local networks
• High definition and low latency
• Works harmoniously with Teradek Bolt and Paralinx products
• Monitor up to 4 live feeds at one time

Video

Video Inputs: 1 x SD/HD-SDI (75 Ohm BNC);1 x HDMI Type-A receptacle

Bonding

Bonding: None

Supported Input Resolutions

Supported Resolutions: 1080p 23.98/24/25/29.97/30/50/59.94/60*

1080i 50/59.94/60, 1080PsF 23/24/25/29/30, 720p 50/59.94/60, 576i, 480i, 480p (for HDMI input only), 576p (for HDMI input only)

*Ingests 1080p50/59/60

Video Processing

Video Compression

H.264, Baseline, Main and High Profile

Supported Video Bitrate

250 Kbps to 15 Mbps*

*15 Mbps (wired), 10 Mbps (WiFi)

Supported Video Bitrate Details: 5 Mbps, 4 Mbps, 3 Mbps, 2.5 Mbps, 1.5 Mbps, 1 Mbps, 750 Kbps

Supported Output Resolutions 169: Configured via Vuer app: 1920×1080, 1536×864, 1280×720, 960×540, 480, 260, 270

Test Pattern Generator Support: Supports Custom Test Pattern

Video Format Conversion Support: Built in Video Scaler and Deinterlacer

Color Correction: None

Protocol Support

Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Supported Video Transport Protocols: Teradek Streaming Protocol (compatible with Teradek Apps, e.g. Live:Air, Vuer)

Remote Control: No Core Support

Software Or Platform Integration: Streaming Platforms not supported directly through device but via the Live:Air app

Audio Processing

Audio Compression: AAC-LC, MPEG Layer 2

Inputs

Audio Input: Embedded Audio Input, Analog Line or Mic in, adjustable gain

Outputs

Audio Output: No audio output

Physical

Dimensions: 4.75″W x 3″D x 1.1″H [120.7 x 76.2 x 27.9mm]

Weight: 11.6oz [328.9g]

Construction: Milled Aluminum

Interfaces

Http: WebUI for Configuration and Control

Configuration Interfaces: OLED Display with joystick Navigation buttons

, Feature-rich WebUI for configuration and control

Switches: On/Off and Reset Switch

Recording Storage: No Recording

Mobile App: Vuer, Live:Air

Usb Interface Functionality:None

Network

Ethernet: 10/100/1000 BASE-T Gigabit

Wireless: WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo

Usb: None

Rf Channel Selection: Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only),

Configurable to specific channels

Power

Power Input: 2 Pin Connector Power input

Battery: No Battery Included

Nominal Power Consumption: 8W, 7W (no WiFi)

Auxilary Power Input: 6-28V DC

General

Mountability: Can be mounted horizontally or vertically with

1/4″ 20 mounting holes
