The Teradek Bolt 6 opens new doors for zero-delay wireless video transmission. Operating on the 6GHz frequency, the Bolt 6 offers better video quality, less interference and more reliability than ever before. Color accurate 4K HDR signals can be transmitted through either 12G SDI or HDMI to up to 6 separate receivers. Pairing transmitters and receivers through the Bolt Manager App is quick and easy. The App also allows you to monitor the signal strength and quality, choose wireless channels and apply 3D LUT’s to the video stream. Both transmitters and receivers are fitted with Gold Mount plates for easy power and connection to cameras and monitors. They run quieter and cooler than previous Bolt models, all with more features and a more stable connection.

Bolt 6 Transmitters and Receivers are cross-compatible with Bolt 4K models, but not with Bolt 500 LT/XT, 1,000 LT/XT or 3,000 XT models.

• 4K video transmission via 12G SDI or HDMI
• 6GHz transmission frequency
• More stable and higher quality signal
• Pass through of camera information, LUT’s and start/stop
• Control through the Bolt Manager App
• Gold Mount battery plates on both Transmitter and Receiver
• Cooler and Quieter

• Video Input/Output: 12G SDI & HDMI Type A
• Supported Resolutions: 4Kp, 1080i/p/psf, 720p, 480i/p,
• Operating Frequency: 6GHz / 5GHZ (when paired with Bolt 4K TX/RX)
• TX to RX Delay: <0.001 sec.
• Power: 2pin Lemo 6-28V

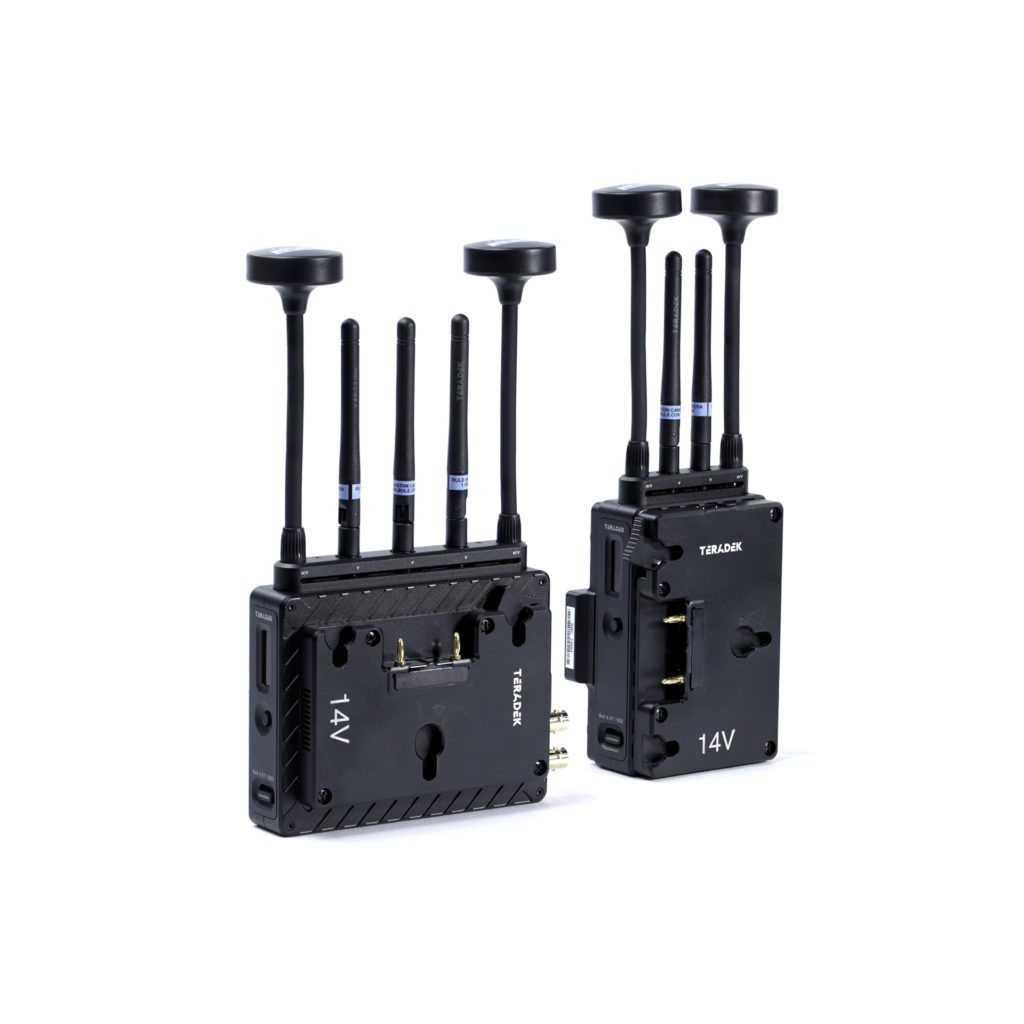

Bolt 6 Transmitter/Receiver Kit:

Bolt 6 Transmitter
Bolt 6 Receiver
(4) 6g Mushroom Antennas
(5) 6g Antennas
(2) Noga Arms
Rapid Adapter 1/4-20
(2) DTap to 2pin Lemo Cables
AC Power Supply

Bolt 6 Receiver Only Kit:

Bolt 6 Receiver
(2) 6g Mushroom Antennas
(3) 6g Antennas
Noga Arm
Rapid Adapter 1/4-20
(2) DTap to 2pin Lemo Cables
AC Power Supply
