The PVM A170 professional OLED monitor combines a slim, lightweight and easily portable design with the technology’s proven advantages of high color accuracy, contrast and picture quality. The PVM-A170 17-inch display is very light with a 40 percent reduction in depth and weight compared to previous Sony models. This design delivers more flexibility and ease of use for live program production, on set and broadcast truck applications.

• 16.5″ Diagonal Screen Size
• 10-Bit OLED with 1920 x 1080 Resolution
• 3G-SDI, HDMI and Composite Inputs
• Loop-Out for Both SDI Inputs
• 89° Angle of View at > 10:1 Contrast
• Black Pixels Switch Off Completely
• OSD Waveform and Vector Scope
• Recessed Rear Connectors
• Serial and Parallel Remote Ports

Audio:
Audio Amp: 1.0 watts
Demod from SDI Input: Yes
Mono/Stereo: Both
Speakers in Chassis: Yes

Computer Formats:

1280 x 1024
HDMI Input

1280 x 768
HDMI Input

1360 x 768
HDMI Input

640 x 480
HDMI Input

Control Inputs:
8 pin RJ 45 Parallel: Yes
Network: Yes
Remote Control: Optional BKM 15R and/or BKM 16R

Digital Inputs:
HDMI: One
HDSDI (SMPTE 292M): Yes and twin SMPTE 425M 3G with active loop through
SDI (SMPTE 259M): Yes

Display:
Display Technology
Super Top Emission: OLED
Image Aspect Ratio: 16:9 and 4:3
Native Aspect Ratio: 16:9

Resolution
1920 x 1080

Screen Size
16.5 inches measured diagonally

General Specifications:

Dimensions (W x H x D)
17 1/4 wide x 11 7/8 tall x 6 1/2 deep (with stand)
17 1/4 wide x 10 3/4 tall x 2 5/8 deep (without stand)

On-Screen Display: Menus, Tally, Flicker Free On/Off, and Video Format
Rack Mount: Optional MB-P17 rack Kit
Weight: 9 lbs. 4 oz. without handle

Input Formats:

Composite: NTSC or PAL
Digital RGB: 720p, 1080i, 1080p
Digital Y Pb Pr : 720p, 1080i, 1080p
Digital Y R-Y B-Y: 525 line or 625 line

On-Screen Display:

Audio Level Indicator: Displayed as stereo pairs or individual mono channels. Up to 16 channels can be selected.
EIA 608 Closed Caption: Yes
EIA 708 Closed Caption: Yes
Waveform Monitor: Yes with line select and zoom functions

Operating Conditions:

Operating Humidity: 30% to 85% non-condensing
Operating Temperature: 32F to 95F
Storage Temperature: -4F to +140F

Power Requirements:
Battery power : Yes
DC Power: 12VDC
Internal or External Power supply: Internal
Power Consumption: 60 watts
Power Requirements: 100 to 240VAC

Video Image Formats:
1080 23.98P
SDI & HDMI

1080 23.98Psf
SDI Only

1080 24P
SDI & HDMI

1080 24Psf
SDI Only

1080 60P
SDI & HDMI

1080 60i
SDI & HDMI

480 60i
Composite, SDI & HDMI

576 50i
Composite, SDI & HDMI

720P 50 or 60Hz
SDI & HDMI

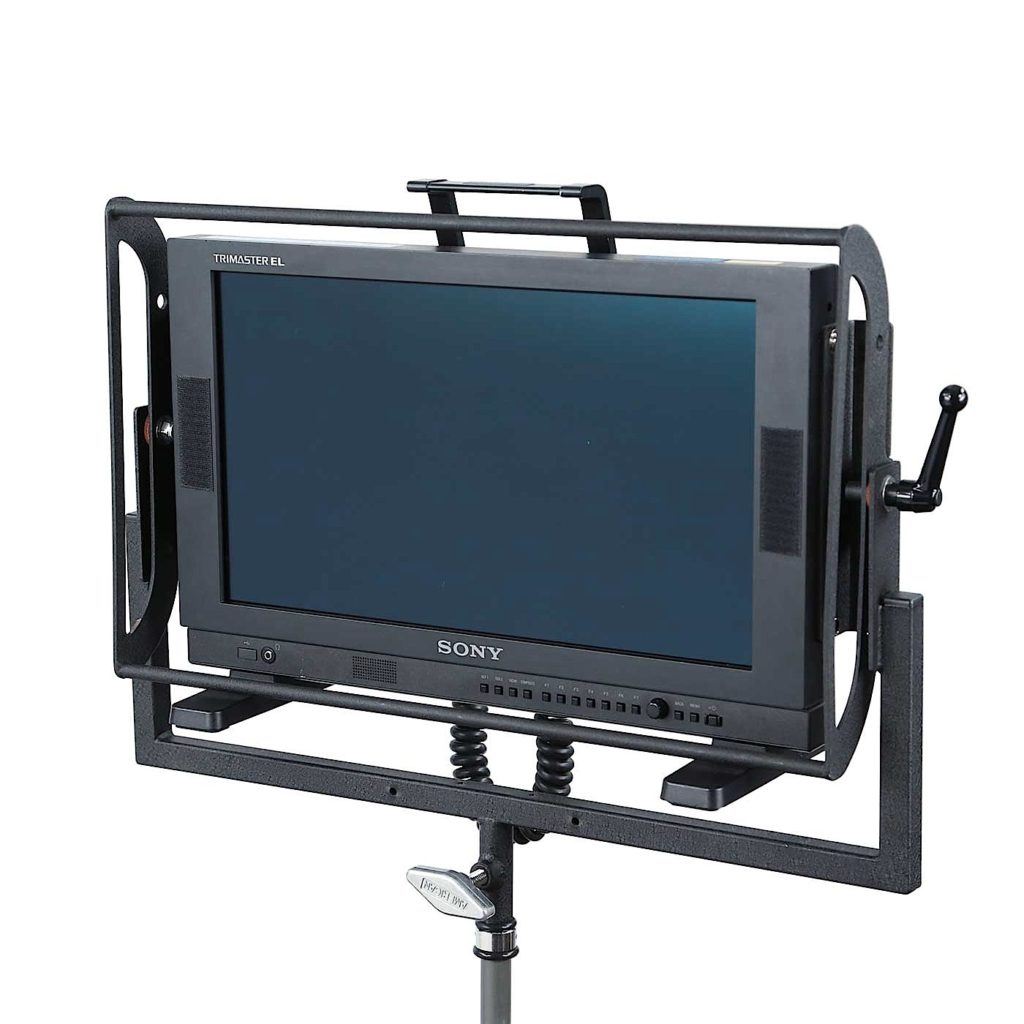

• PVM A170 OLED 17” Monitor
• (2) Piece Hoodman sunshade
• Screen Protector
• Yoke w/ Tie Down

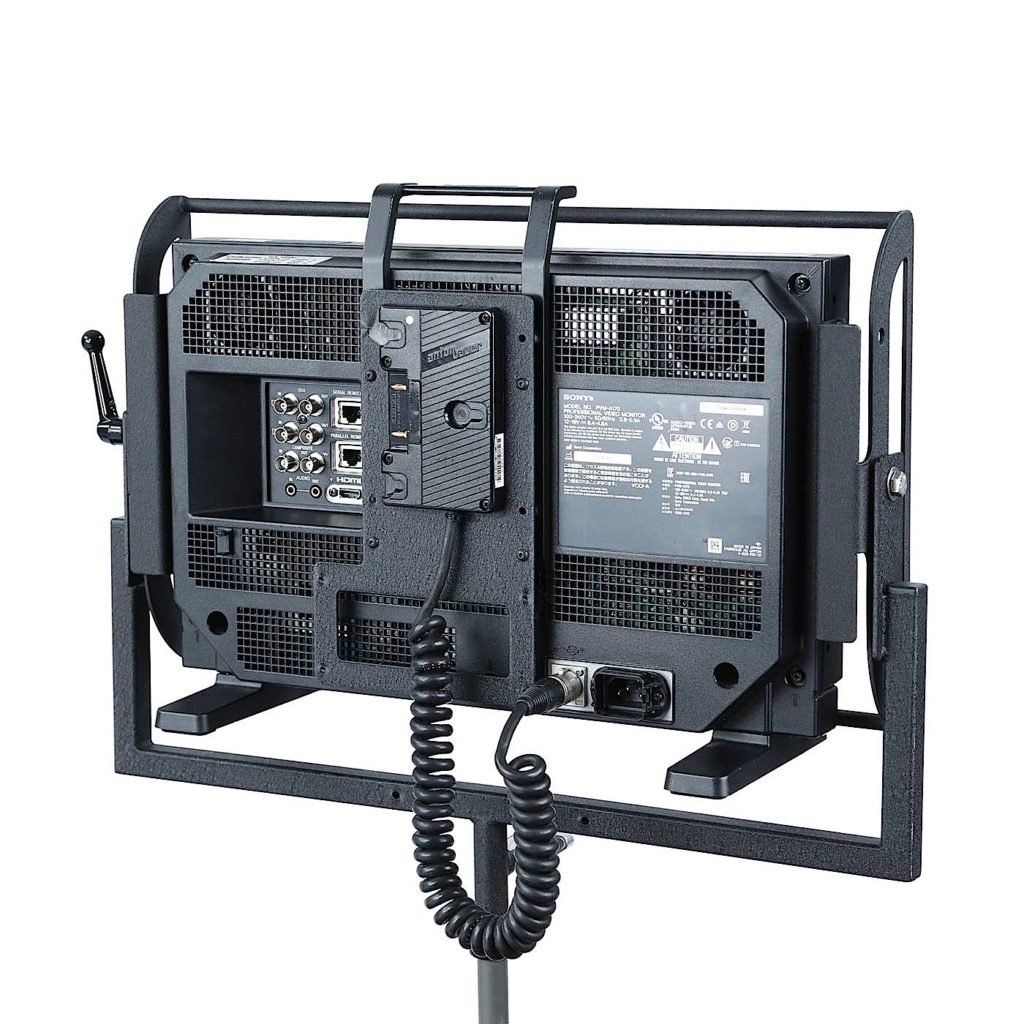

• A/B Gold Mount Plate w/ XLR 4pin
• AC Cable

Anton Bauer batteries are available for an extra charge
