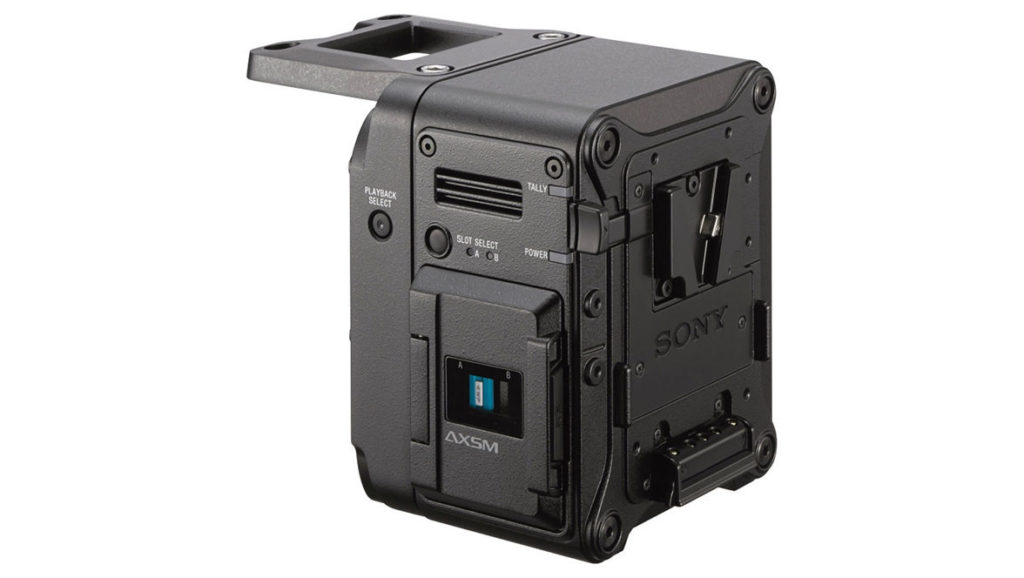

Sony AXS R7
The Sony AXS R7 is a camera dockable bolt-on recorder that enables 6K recording on the Sony VENICE as well as all 16 Bit Linear RAW and X-OCN Compressed recordings. It records to AXSM-A media and is required for recording all resolutions greater than 4K on the Sony VENICE.
- Dockable on-board recorder
- Allows for RAW and X-OCN recording
- Up to 6K60 for VENICE, 4K120 for F55
- Up to 30 Seconds Cache Recording
- Rugged Chassis with Durable Camera Link
- 16-Bit Linear X-OCN Format Capture
- Uses High-Speed S48 (4.8Gb/s) AXS Cards
- Dual Card Slots
- Dust- and Splash-Resistant
- Simultaneous Recording up to 60p
- Power via Camera or 4-Pin XLR Input
| Video I/O | 1 x 144-Pin Input |
| Embedded Audio | 144-Pin: 4-Channel |
| Audio I/O | None |
| Power I/O | 1 x XLR 4-Pin Input 1 x XLR 5-Pin Input 1 x Barrel Output |
Format Support
| Video Format | 144-Pin 6K: 29.97/25/24/23.98 4K Raw: 120/59.94/50/29.97/25/24/23.98 DCI 4K: 120/59.94/50/29.97/25/24/23.98 UHD 4K: 120/59.94/50/29.97/25/24/23.98 DCI 2K: 240/120/59.94/50/29.97/25/24/23.98 1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 |
| Pulldown Conversion | None |
| Camera Trigger | None |
| Pre-Roll Record | 4K: 30 Seconds |
| Encoding Formats | 4096 x 2160 X-OCN X-OCN LT, X-OCN ST, X-OCN XT at up to 59.94 fps |
| Maximum Audio Tracks | 4 |
Power
| DC Input Power | 11 to 17 VDC |
| Battery Type | None |
| Power Consumption | 24 W |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Storage Humidity | 20 to 90% |
General
| Material of Construction | Metal |
| Dimensions | 5.3 x 4.2 x 3.7″ / 135 x 106 x 93 mm |
| Weight | 2.65 lb / 1.2 kg |
Sony R7 Recorder
Sony AXS-CR1 AXSM Card Reader
USB 3.0 Type A – B Cable
AC Power Supply for AXS-CR1 with AC Cable
Sony AXS R7
