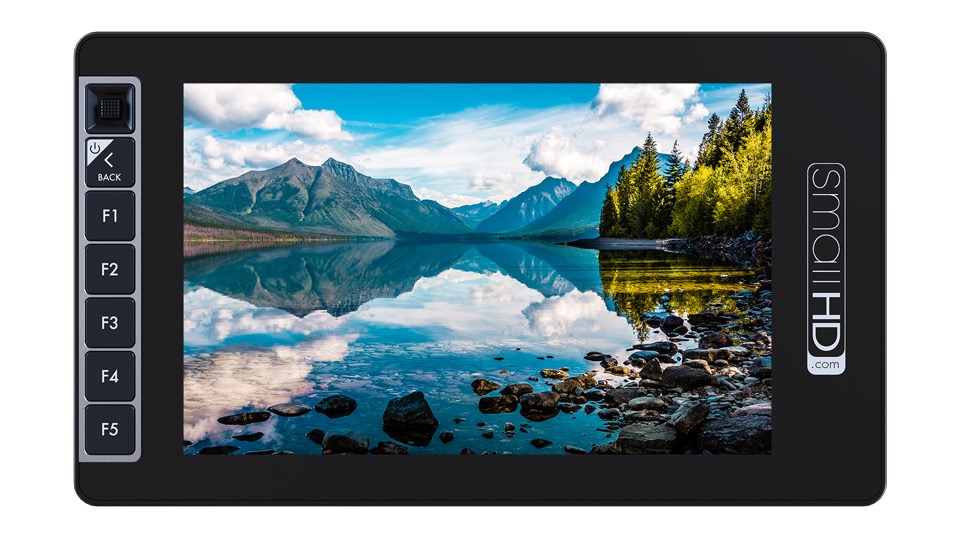

The SmallHD 703 UltraBright On-Camera Monitor sports a 2200 cd/m² bright backlight. The 7″ 1920 x 1080 LCD provides a sharp image, ideal for focus pulling and image analysis on set and in the field. An advantage of the high-brightness panel is the monitor’s ability to preview HDR content. HDR preview extends the display’s dynamic range to portray a greater range of brightness in the image.

An aluminum exterior keeps the monitor durable yet lightweight while also acting as a heatsink for the internal electronics. The LCD panel, made by Gorilla Glass, acts as a protector, and is notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.

The SDI and HDMI I/O are on the sides. Dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface.

PageBuilder OS

PageBuilder OS: Quick and easy way to access professional software tools like Focus Peaking, HD Waveform, and 3D LUTs.

HDR Preview and 3D LUT Support

UltraBright monitors feature HDR Preview with 10-Bit ColorEngine and up to 2500 nits. Fine tune your HDR Preview with white point and black point adjustment sliders. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.

Efficiently UltraBright

The 503 and 703 UltraBright are the Brightest 5″ and 7″ monitors in the world while maintaining low power consumption. In addition to LEMO power, Gold Mount, V-Mount and Sony L-Series battery plates are available.

Software That Eliminates Hardware

Pagebuilder OS enables you to send your video signal downstream via the Output Preview page. Any LUTs applied to the Output Preview page will also be mirrored downstream. Easily convert HDMI/SDI signals with Cross Conversion .

HD Scopes with Pixel Accurate Data Analysis

Display up to three, fully customizable Scopes on screen at a time. Utilize Color Picker to show raw pixel values from the displayed video.

Expose with Confidence

Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Dual View

Monitor two input sources simultaneously. You can apply LUT’s and tools to each source individually. Great for monitoring A/B cameras or pre and post LUT footage. You can also apply tools to each page individually.

Custom Focus Assist & Peaking Tools

Focus assist creates a bright highlight on in-focus subject matter; highly recommended when focusing on the fly. Focus Peaking increases the image sharpness allowing more detailed focusing. Change your color and intensity of your focus tools.

Versatile Image Framing

Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9 and Custom (user selectable).

Display

Panel Type LTPS LCD

Size Diagonal 7.02

Resolution 1920 x 1080

Pixel Density (PPI) 323 ppi

Aspect Ratio 16:9

Active Area 7.02

Brightness 2200 nits

Contrast 1200:1

Color Gamut 100% Rec 709

Color Depth 10-Bit Color Intelligence Engine

Viewing Angle 178 Degrees (CR<10)

Backlight Type White LED

Adjustable Backlight Yes

Input Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25

HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels

Output Signal Types/Formats

3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25

HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Audio HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

SDI 1x 3g Input, 1x 3g Output

HDMI 1x Input, 1x Output

Component Not Supported

Composite Not Supported

Audio 1x ⅛” Headphone Jack

Power In 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)

USB 1x Micro USB

Controls

Primary Control Interface Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons

Data I/O

Storage SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.

USB USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.

Power

Connector Type 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)

Voltage With DV Battery Plate: 6.0 – 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 – 34V 14.4V Nominal With Lemo Input: 12 – 34V Max

Power Consumption TBD

Recommended Power Supply Included

Overload Protection Yes

Output Voltage (VDC) Mirrors Input Voltage

Environmental

Compliance FCC, IC, CE, RoHS

Operating Temperature 0 – 100 degrees F

Storage Temperature -4 – 120 degrees F

Screen Protection AR Coated Gorilla Glass Optical Bonding on Panel

Height 4.88″ (12.40cm)

Width 8.38″ (21.29cm)

Depth/Length 1.13″ (2.87cm)

Weight (Item Only without battery) 26.4oz (748.43g)

Weight (Packaged) 37oz (1048.93g)

Mount Points 1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor

Software

Pixel Zoom (type) 2x & 4x Zoom with smooth pan via joystick

Frame Guides Yes: Preset Aspect Ratios & Customizable

DSLR Scale Canon 5DMkii & Canon 7D

Custom Scale Yes (Underscan Only)

Anamorphic De-Squeeze Yes: 1.33x, 1.5x, 1.66x, 2.0x

Image Rotate(Manual/Automatic) Yes – Automatic or Manual Control

Image Flip (Manual/Automatic) Yes – Automatic or Manual Control

Cross Conversion Yes: HDMI → SDI & SDI → HDMI

Focus Assist (Colors) Yes – User Adjustable Color Style and Intensity

Peaking Yes – User Adjustable Intensity

False Color Yes – Rainbow & Arri Style

Zebra Yes – Dual – User Configurable

Waveform Yes – Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

Vectorscope Yes

RGB Parade Yes – Fully User Customizable

Histogram Yes – Luma & RGB Style

Image Capture Yes – With Dedicated Button

Custom LUTS Yes – Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

LUT Downstream Yes – Available on SDI 1 or HDMI Out. Applied on Output Preview Page.

LUT Import via SD Card or USB Storage Device

Image Overlay Yes with Opacity Slider and Blink Setting

Firmware Compatible with 1300-1700-2400-3200 Firmware VX.x and later. Firmware Version to support 503UB & 703UB Does not yet exist. Version number not yet known.

Audio Meters Yes – HDMI & SDI up to 8 channel
