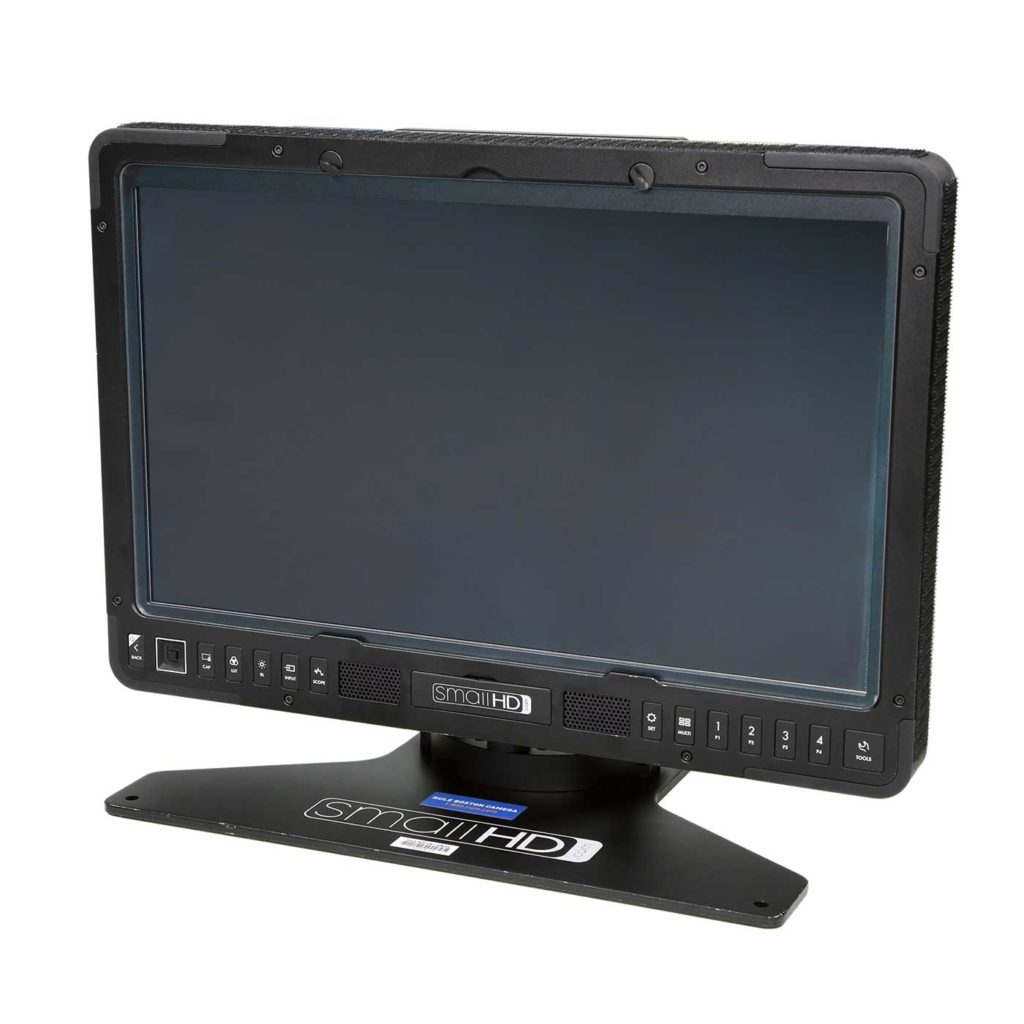

The SmallHD 1703 HDR monitor features 1000 NITs brightness in a durable 17 inch monitor. The monitor has a full anodized aluminum chassis with four sided rubber impact protection for the LCD panel, making it extremely rugged. With an accessory rail system and convenient table stand with built-in C-stand mount, you save hours of setup and tear down. The 1703 HDR monitor also features cross conversion from HDMI to SDI and SDi to HDMI and 2 HDMI and SDI inputs and outputs.

• Daylight viewable 1000 NITbrightness
• 2x SDI + HDMI in/out
• 1920 x 1080 display resolution
• 17 in screen diagonal
• HDR preview, HD scopes, 3D LUT’s

Display
Panel Type
IPS
Size Diagonal
17.25
Resolution 1
920×1080
Pixel Density (PPI)
128 PPI
Aspect Ratio
16:9
Active Area
15(W) x 8.42(H)
Brightness
1100 nits
Contrast
700:1
Color Gamut 1
00% Rec.709
Color Depth
8 bit
Viewing Angle
70 deg. Left/Right; 50 Deg. Up; 70 Deg Down
Backlight Type
LED
Adjustable Backlight
Yes
Temperature Adaptive Color
No

Input Signal Types/Formats
3G-SDI
YCC 4:2:2 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI
YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI
Not Supported
HDMI
Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component
Not Supported
Composite
Not Supported
Audio
HDMI & SDI ­ Monitor through Speakers in Front Bezel or through Headphone Jack ­ Metering up to 8 channels

Output Signal Types/Formats
3G-SDI
YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,
HD-SDI
YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits
SD-SDI
Not Supported
HDMI
Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50
Component
Not Supported
Composite
Not Supported
Audio
No Audio output (for initial firmware release) ­ to be supported at a later release

Connector Type
SDI
2x 3G Inputs, 2x 3G Outputs
HDMI
1x Input, 1x Output
Component
Not Supported
Composite
Not Supported
Audio
1x Headphone Jack on Front of Monitor
Power
1x AC Power Input ­-3 Prong 90­-260V, 1x XLR 4­pin Input 12­-34VDC, 1x Lemo Output 12VDC @ 4A Max
USB
1x Front USB2, 2x Rear USB2

Controls
Primary Control Interface
Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 1­4 Instant Selection; Tools Menu
Record/Capture
Dedicated Capture Button on Front Bezel

Data I/O
Storage
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades

Power
Connector Type
3­Pin Grounded AC 120/240V IN, Dual XLR 12­34VDC IN for Batteries, 12V Lemo 2­pin OUT 4A Max
Battery Types
Gold Mount / V­Mount via 4­pin XLR Connector

Environmental
Compliance
FCC, IC, CE, RoHS
Operating Temperature
32F ­ 100F
Storage Temperature
4F-120F
Screen Protection
Acrylic Screen Protector Available as an Option
Height
11.5″ (29.21cm)
Width
17.5″ (44.45cm)
Depth/Length
2.5″ (6.35cm)
Weight (Item Only without battery)
12.0625lb (5.47kg)
Weight (Packaged)
16.86lb (7.65kg)
Mount Points
Multiple 1⁄4”­20 & 3⁄8”­16 Threads on Top, Bottom, Left & RightMultiple 1⁄4”­20 & 3⁄8”­16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor
Construction
Full Anodized Aluminum Chassis with Four Sided Rubber Impact Protection for LCD Panel

Software
Pixel Zoom (type)
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic)
Yes ­ Automatic
Image Flip (Manual/Automatic)
Yes ­ Automatic
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors)
Yes ­ User Adjustable Color and Intensity
Peaking
Yes ­ User Adjustable Intensity
False Color
Yes ­ Rainbow & Arri Style
Zebra
Yes ­ Dual ­ User Configurable
Waveform
Yes ­ Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes ­ Fully User Customizable
Histogram
Yes ­ Luma & RGB Style
Image Capture
Yes ­ With Dedicated Button
Custom LUTS
Yes ­ Loadable by Page or as Systemwide Color Calibration
LUT Downstream
Yes ­ Available on SDI 1 or HDMI Out
LUT Import
via SD Card
Image Overlay
Yes with Intensity Slider and Blink Setting
Firmware
Compatible with 1700 Series Firmware V3.0 and Later
Audio Meters
Yes ­ HDMI & SDI up to 8 channel
