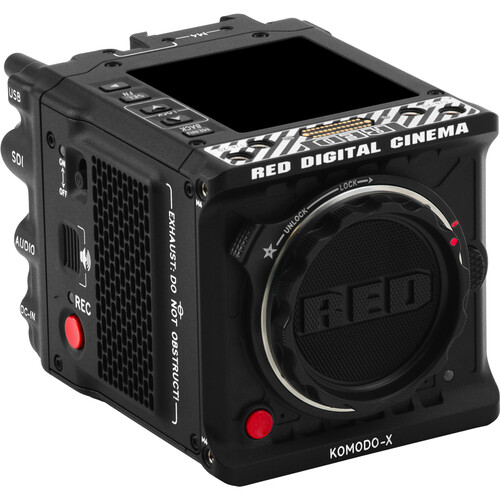

RED Komodo X
Small, yet powerful, the RED KOMODO X offers a host of amazing features suitable for shooting in the studio, on a gimbal or anywhere in between. KOMODO-X sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.
The innovative global shutter significantly reduces motion artifacts from the image and captures crisp frames without the “jello” wobble that is possible with other rolling shutter sensors. A native RF mount and the ability to adapt to a wide range of other mount types allows for nearly endless possibilities in lensing.
Control of the camera can be from the integrated touch screen on the top of the camera or wireless with the Red_Control app.
- 19.9MP Super35 Global Shutter CMOS
- Compact KOMODO Line Design
- Locking Canon RF Lens Mount
- Up to 6K80p & 4K120p Video

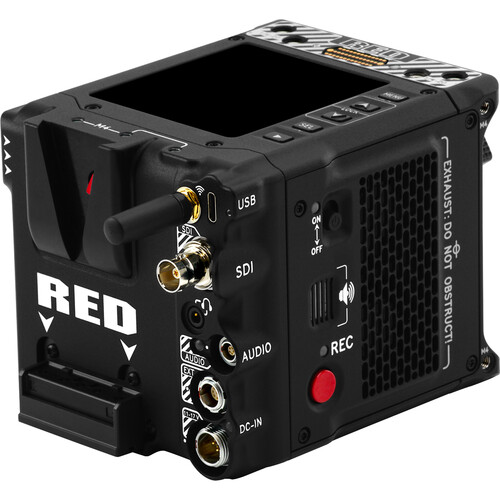

- 12G-SDI, USB-C, 5-Pin Audio Ports
- 6K Streaming via RED Connect License
- Wireless Control, File Offload via Wi-Fi
- Integrated 2.9″ Touchscreen
| Imaging | |
| Lens Mount | Canon RF |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution | Effective: 19.9 Megapixel (6144 x 3240) |
| Image Sensor | 27.03 x 14.26 mm (Super35) CMOS |
| Image Stabilization | No |
| Built-In ND Filter | No |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Global Shutter |
| Advertised Dynamic Range | 16.5 Stops |
| Video Capture | |
| Internal Recording Modes | ProRes 422/ProRes 422 HQ/ProRes 422LT |
| 4096 x 2160 up to 120 fps [560 MB/s] | |
| ProRes 4444 4:4:4 | |
| 4096 x 2160 up to 80 fps [560 MB/s] | |
| ProRes 4444XQ 4:4:4 | |
| 4096 x 2160 up to 60.00 fps [560 MB/s] | |
| REDCODE RAW | REDCODE HQ/REDCODE LQ/REDCODE MQ | |
| 6144 x 3240 up to 80 fps [560 Mb/s] | |
| 5120 x 2700 up to 96 fps [560 Mb/s] | |
| 4096 x 2160 up to 120 fps [560 Mb/s] | |
| 2048 x 1080 up to 240 fps [560 Mb/s] | |
| External Recording Modes | 4:2:2 via SDI/BNC |
| DCI 4K (4096 x 2160) up to 60.00 fps | |
| DCI 2K (2048 x 1080p) up to 60.00 fps | |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone | Stereo |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| IP Streaming | MJPEG |
| 1920 x 1080 (5000.00 Mb/s) | |
| Interface | |
| Media/Memory Card Slot | Single Slot: CFexpress Type B (CFexpress 2.0) |
| Video I/O | 1x BNC (12G-SDI) Output |
| Audio I/O | 1x LEMO 5-Pin Line Input on Camera Body |
| Power I/O | 1x LEMO 6-Pin (11 to 17VDC) Input |
| Other I/O | 1x 9-Pin (Genlock, GPI, Timecode) |
| 1x USB-C (Camera Interface) Control/Data/Video Input/Output | |
| 1x RED Cable-Free Monitor Connection Output | |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: RED Control | |
| Functionality: Remote Control | |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Focus | |
| Focus Type | Auto and Manual Focus |
| General | |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 122°F / -20 to 50°C up to 85% Humidity |
| Battery Type | V-Mount |
| Shoe Mount | No |
| Tripod Mounting Thread | 1/4″-20 Female (Bottom) |
| 3/8″-16 Female (Bottom) | |
| Accessory Mounting Thread | 4x 1/4″-20 |
| 4x M4 | |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | 5.09 x 3.99 x 3.75″ / 129.37 x 101.26 x 95.26 mm |
| Weight | 2.62 lb / 1.19 kg (Body Only) |
