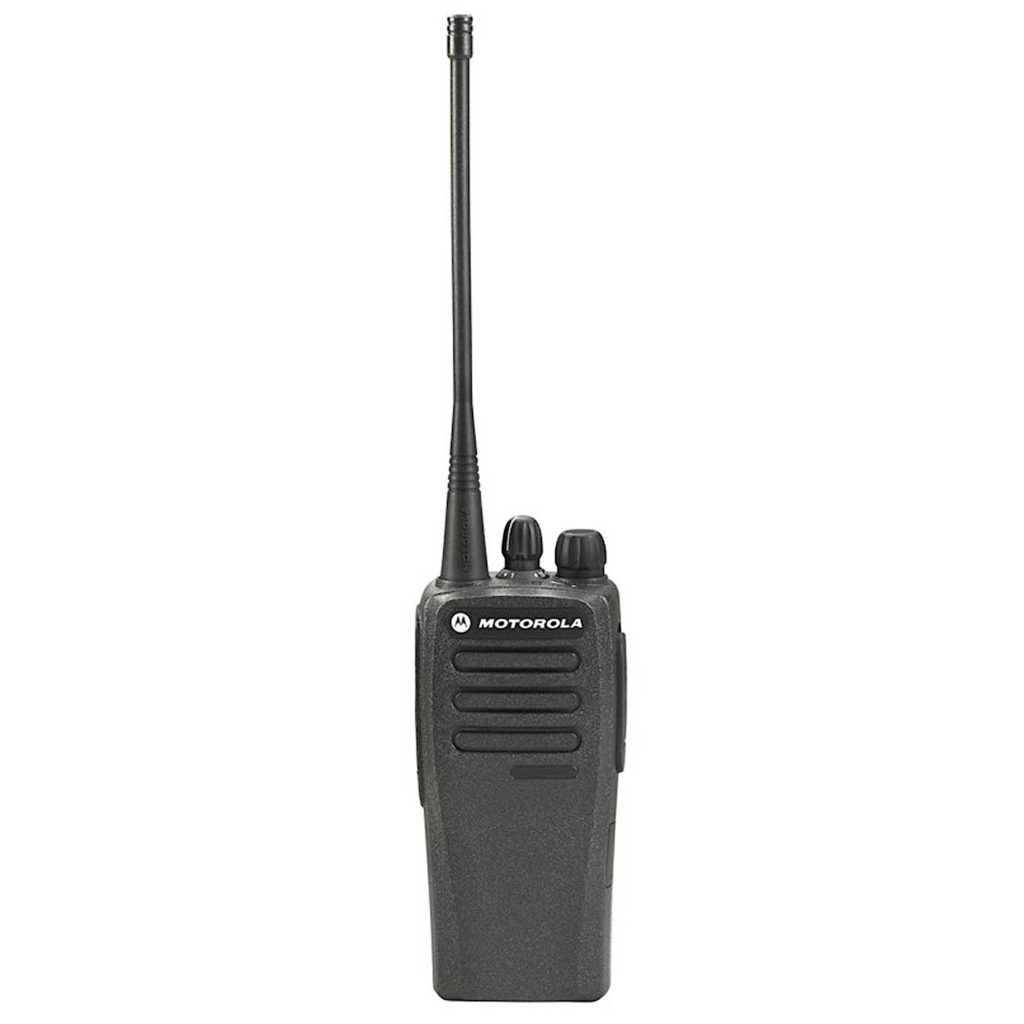

Versatile and powerful, Motorola CP200d combines the best of two-way radio functionality with the latest analog and digital technology. Whatever your needs, the CP200d provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right.

• Analog / Digital
• Voice Communications
• Dual Capacity Direct Mode
• Digital Mobile Radio (DMR) Standards Compliant
• Narrowbanding Compliant
• Transmit Interrupt (Decode Only)
• Basic Privacy
• Voice Announcement
• IP54 Rated

GENERAL
Frequency Range
VHF (136-174 MHz); UHF (403-470 MHz)
Repeater Capable
Yes
Estimated battery life
Analog: 14.5 hrs/Digital: 18.5 hrs
Standard battery chemistry type
Lithium Ion
Frequency Band
VHF, UHF

RECEIVER
Frequency
VHF: 136-174 MHz ; UHF: 403-470 MHz
Channel Spacing
12.5 kHz / 25 kHz3
Frequency Stability (-30°C, +60°C, +25°C Ref)
± 0.5 ppm
Analog Sensitivity (12 dB SINAD)
0.3 uV / 0.22 uV (typical)
Digital Sensitivity (5% BER)
0.25 uV / 0.19 uV (typical)
Intermodulation (TIA603D)
70 dB
Adjacent Channel Selectivity (TIA603D)
45 dB @ 12.5 kHz / 70 dB @ 25 kHz3
Spurious Rejection (TIA603D)
70 dB
Rated Audio
0.5 W (Internal)
Audio Distortion @ Rated Audio
5% (3% typical)
Hum and Noise
-40 dB @ 12.5 kHz / -45 dB @ 25 kHz3
Audio Response
TIA603D
Conducted Spurious Emissions (TIA603D)
-57 dBm

TRANSMITTER
Frequency
VHF: 136-174 MHz ; UHF: 403-470 MHz
Channel Spacing
12.5 kHz / 25 kHz3
Frequency Stability (-30°C, +60°C, +25°C Ref)
± 0.5 ppm
Low Power Output
VHF: 1 W ; UHF: 1 W
High Power Output
VHF: 5 W ; UHF: 4 W
Modulation Limiting
± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz3
FM Hum and Noise
-40 dB @ 12.5 kHz / -45 dB @ 25 kHz3
Conducted / Radiated Emission
-36 dBm < 1 GHz / -30 dBm > 1 GHz
Adjacent Channel Power
60 dB @ 12.5 kHz / 70 dB @ 25 kHz3
Audio Response
TIA603D
Audio Distortion
3% (typical)
4FSK Digital Modulation
12.5 kHz Data: 7K60F1D and 7K60FXD
12.5 kHz Voice: 7K60F1E and 7K60FXE
Combination of 12.5 kHz Voice and Data: 7K60F1W
Digital Vocoder Type
AMBE +2™
Digital Protocol
ETSI TS 102 361-1, -2, -3

Two Batteries
Hand Mic
Headset
