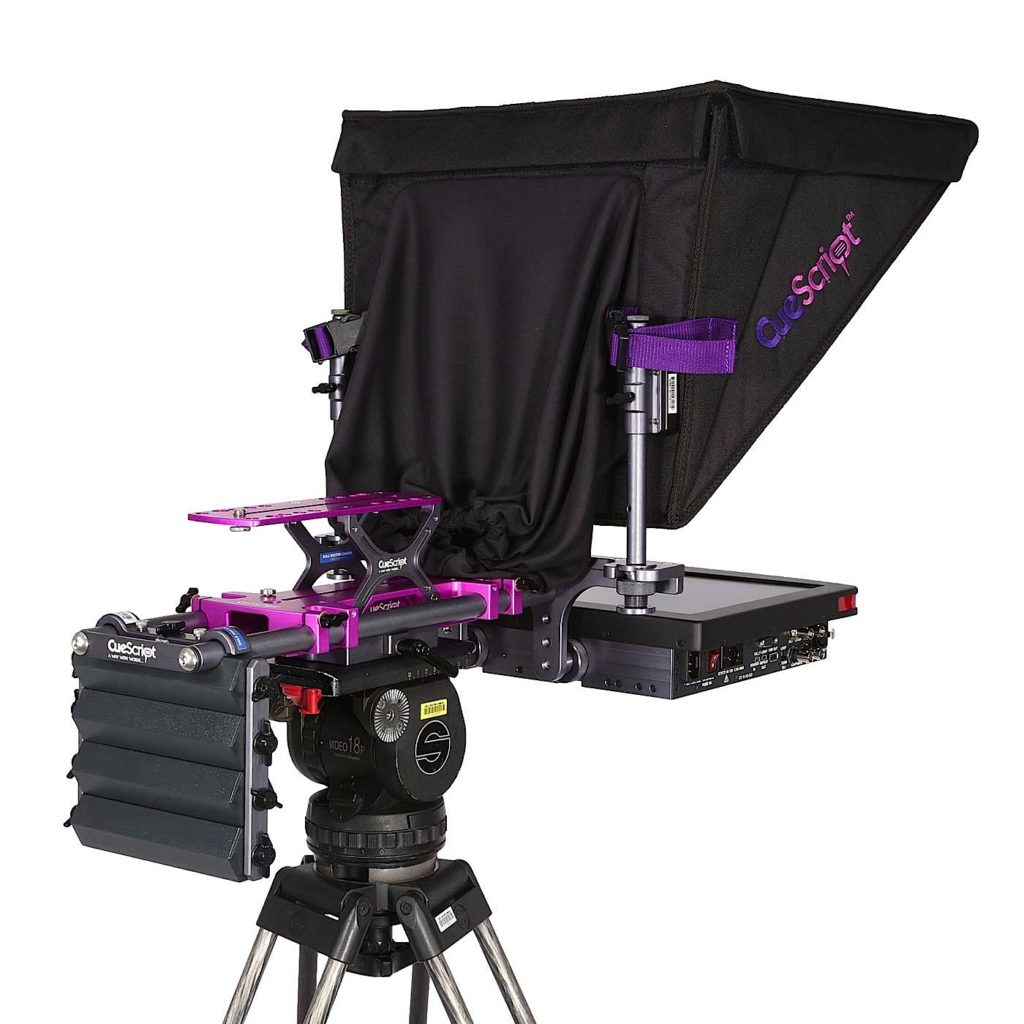

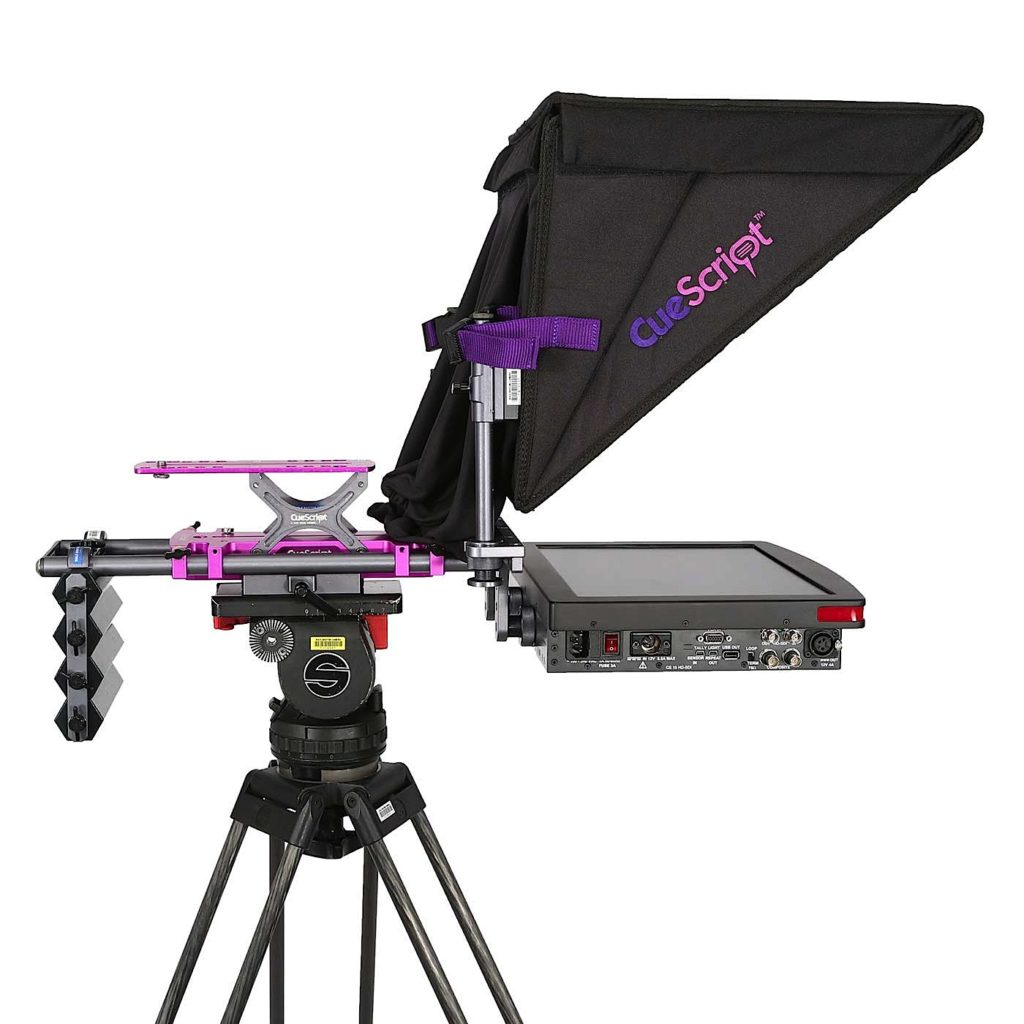

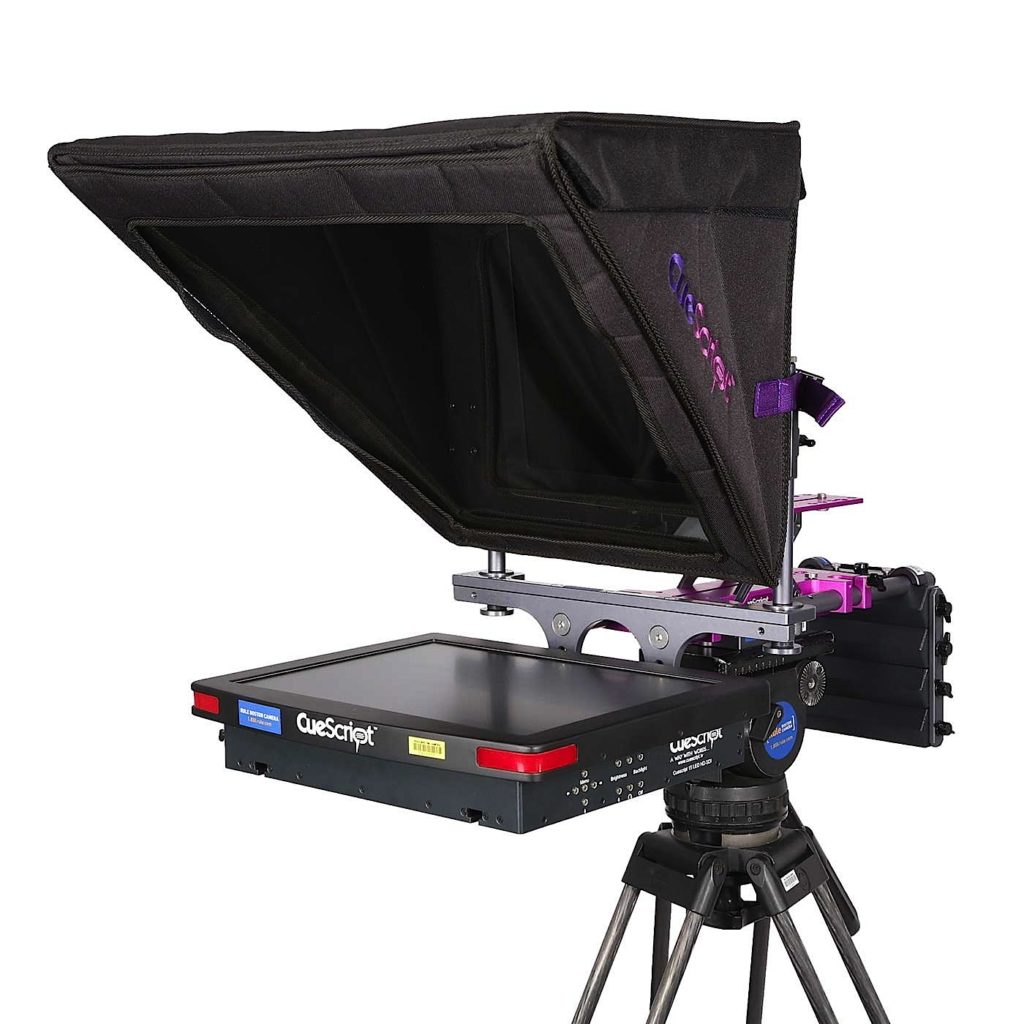

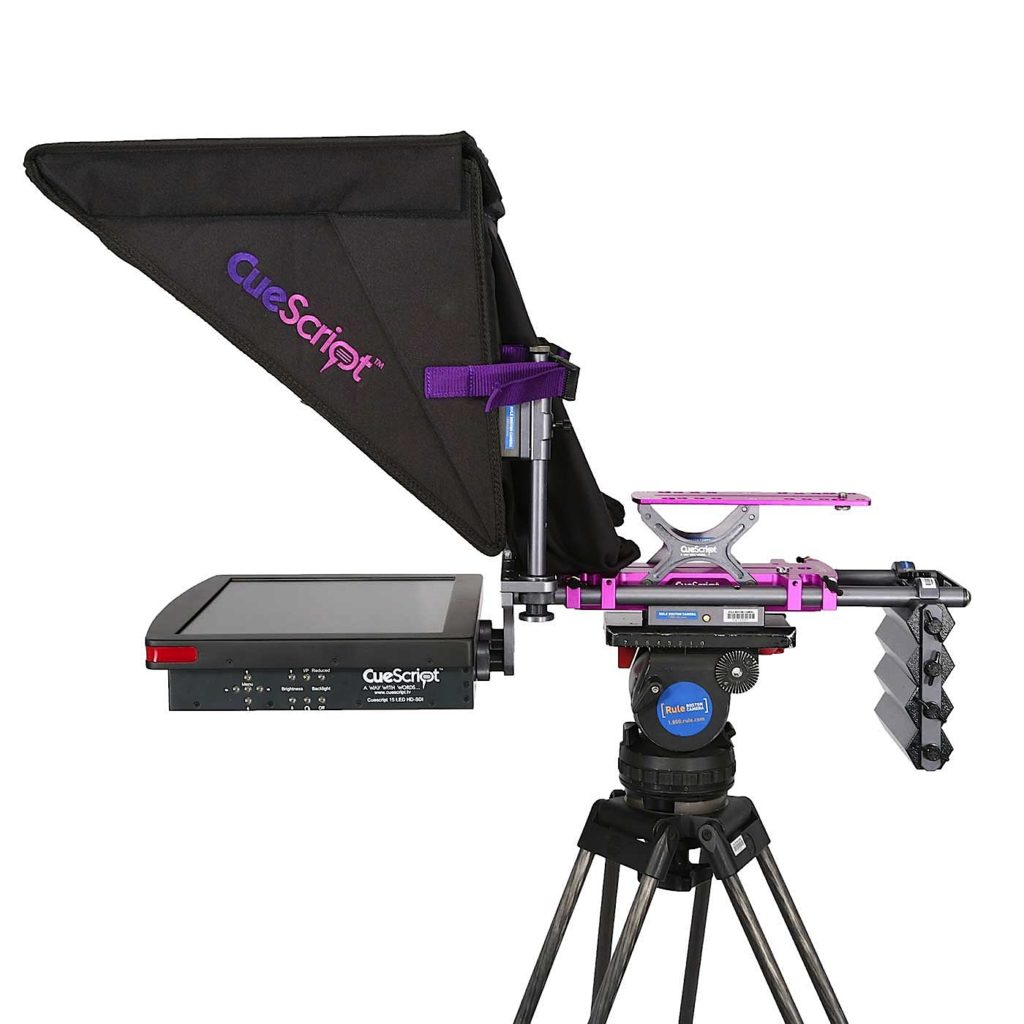

The Cue Script CSM15 prompter is styled for use in studio as well as on location. The sleek design has an integrated mounting system allowing for quick, easy setup and the LED high brightness screen means clarity of the autocue isn’t impaired if shooting in daylight.

Brightness: 1500 nits
Contrast Ratio: 700
Viewing Angle: 160×140
Back light saver: User selectable timing
Reverse/Rotation: 4 way picture orientation

DIMENSIONS
Front to Back: 11.52” (292mm)
Right to Left: 14.16” (360mm)
Depth: 2.67” (68mm)
Monitor only Weight: 8.9lbs/4kg
Complete weight with Large Hood, Glass & Mount Purple: 21.3lbs/9.7kg

VIDEO
Autosensing:
PAL/NTSC/VGA/HD-HD-SDI
Composite 75 Ohms
Looping video output
HD-SDI – Input
HD-SDI – Output
Controls: Illuminated LED push-buttons with adjustable brightness

POWER INPUTS & CONNECTORS
Internal PSU:
IEC Wide Range 100-264 AC & 150VDC
XLR 4pin 12v DC 36 Watts

POWER CONSUMPTION
3 Mode adjustable power input
Low – 17 Watts
Medium – 19 Watts
High – 24 Watts

ADDITIONAL CONNECTORS
Tally DC Out: USB 5V
Tally Sensor:
Mini USB Tally Sensor
5-12 Volt Tally input
USB – DC Out: Mini USB 5V & Tally repeat
4 Pin XLR DC Out: 12V 36 Watts
