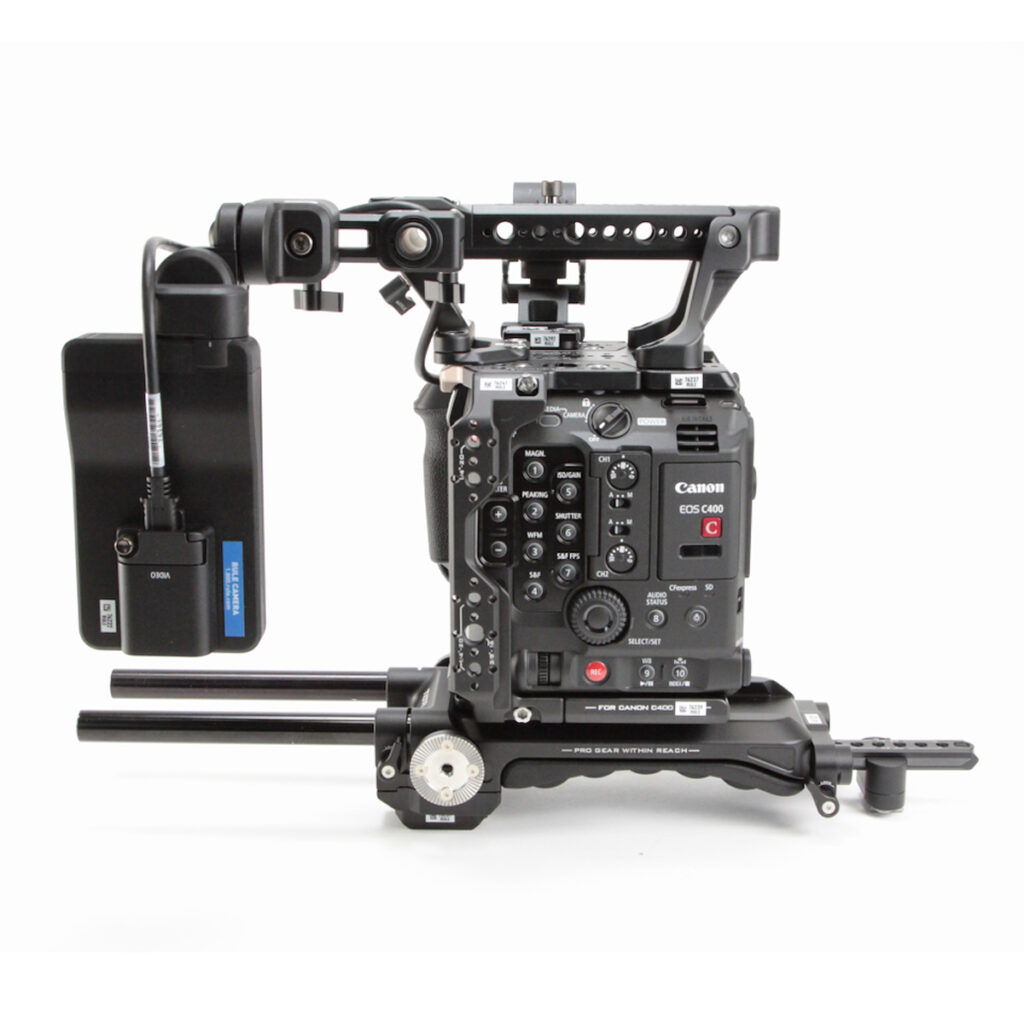

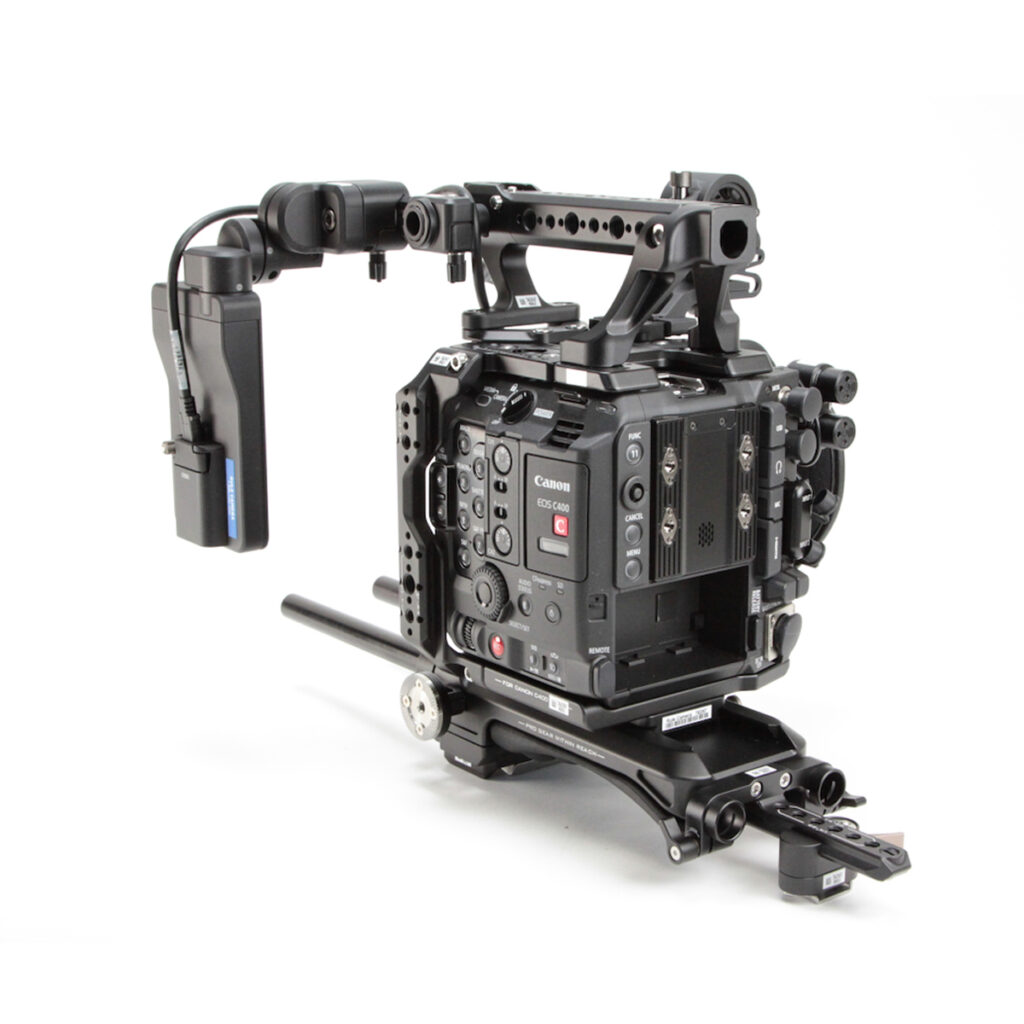

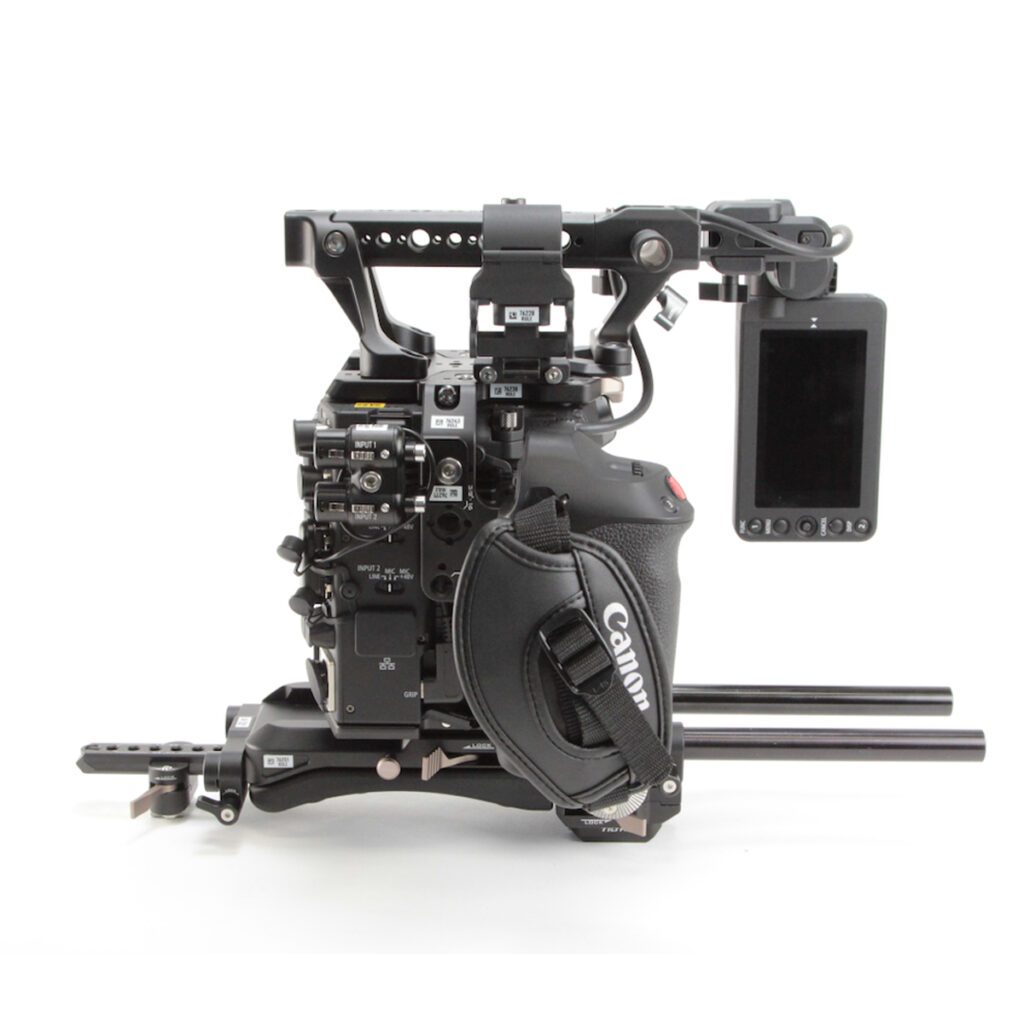

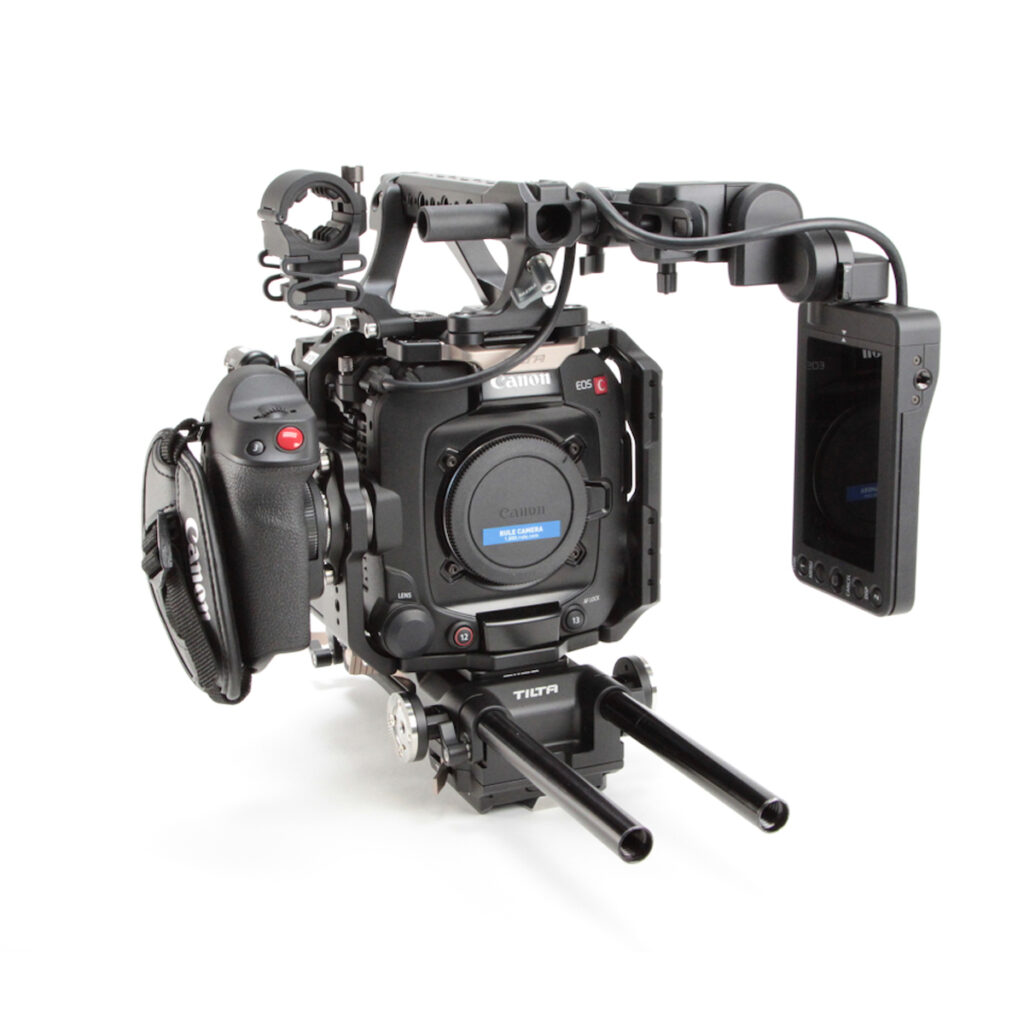

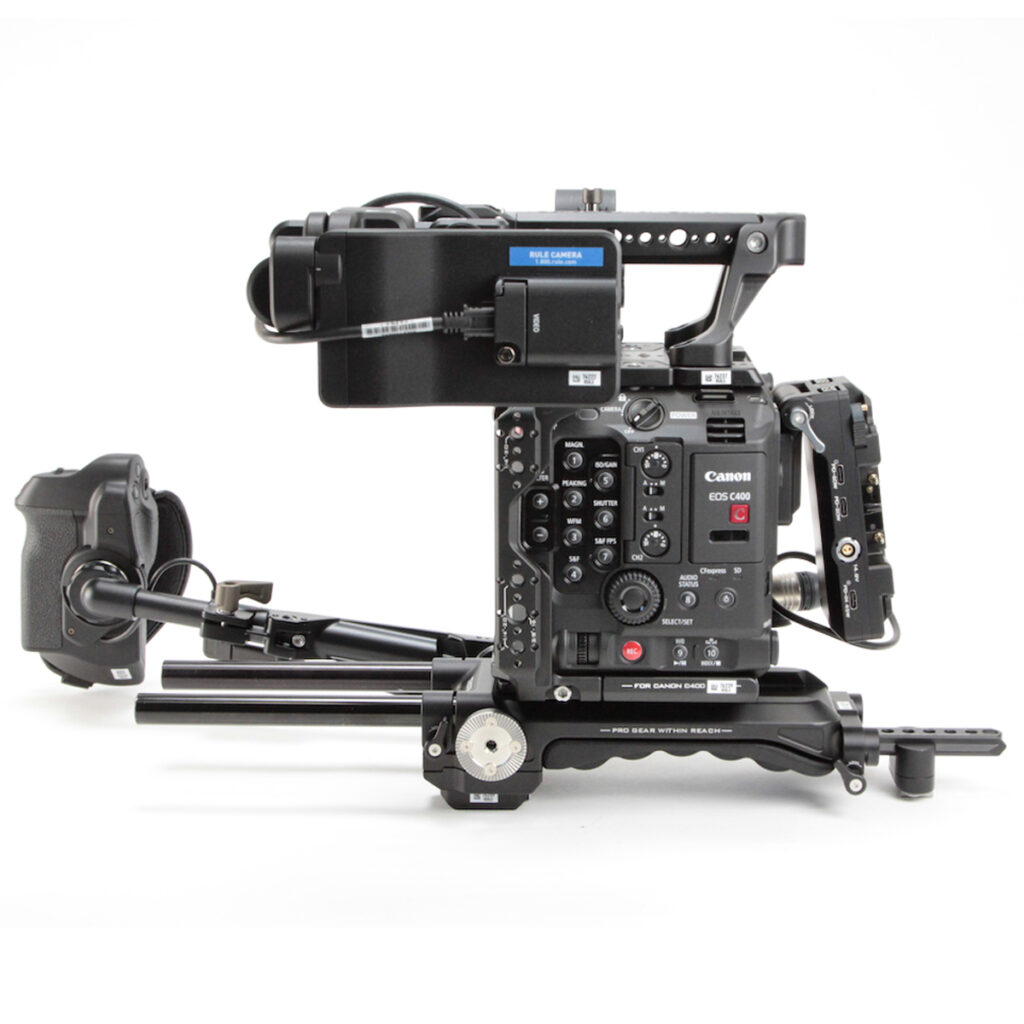

Canon C400
The Canon C400 is an extremely versatile and capable Full Frame Digital Cinema camera, at home in documentary, film or broadcast worlds. It features a 6K Back-illuminated CMOS sensor with Triple-Base ISOs: 800, 3200, or 12,800. It’s compact and lightweight, and offers a broad choice of recording options and frame rates. When shooting fast-moving subject matter, you will appreciate the Dual Pixel AF 2 autofocus system.
- 6K Back-illuminated CMOS sensor
- Triple-base ISO
- Netflix-approved
- Internal ND filters
| Lens Mount | Canon RF |
| Sensor Resolution | Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170) |
| Image Sensor | Full-Frame BSI Stacked CMOS |
| Image Stabilization | Digital, 5-Axis |
| Internal Recording Modes | Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) up to 60.00 fps [552 to 2130 Mb/s] 4368 x 2304 up to 100 fps [293 to 916 Mb/s] 4096 x 2160 up to 120 fps [258 to 993 Mb/s] 2184 x 1152 up to 180 fps [74 to 574 Mb/s] XF-AVC Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps [240 to 1200 Mb/s] 3840 x 2160 up to 120 fps [240 to 1200 Mb/s] 2048 x 2160 up to 180 fps [120 to 300 Mb/s] 1920 x 1080 up to 180 fps [120 to 300 Mb/s] XF-AVC Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps [150 to 250 Mb/s] 3840 x 2160 up to 120 fps [150 to 250 Mb/s] 2048 x 1080 up to 180 fps [25 to 50 Mb/s] 1920 x 1080 up to 180 fps [25 to 50 Mb/s] XF-AVC S Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps [240 to 1200 Mb/s] 3840 x 2160 up to 120 fps [240 to 1200 Mb/s] 2048 x 1080 up to 180 fps [120 to 300 Mb/s] 1920 x 1080 up to 180 fps [120 to 300 Mb/s] XF-AVC S Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps [130 to 250 Mb/s] 3840 x 2160 up to 120 fps [130 to 250 Mb/s] 2048 x 1080 up to 180 fps [50 Mb/s] 1920 x 1080 up to 180 fps [50 Mb/s] XF-AVC S Long GOP 4:2:0 8-Bit 4096 x 2160 up to 180 fps [100 to 150 Mb/s] 3840 x 2160 up to 180 fps [100 to 150 Mb/s] 2048 x 1080 up to 180 fps [35 Mb/s] 1920 x 1080 up to 180 fps [35 Mb/s] XF-HEVC S Long GOP 4:2:2/4:2:0 10-Bit 4096 x 2160 up to 120 fps [100 to 225 Mb/s] 3840 x 2160 up to 120 fps [100 to 225 Mb/s] 2048 x 1080 up to 180 fps [35 to 50 Mb/s] 1920 x 1080 up to 180 fps [35 to 50 Mb/s] Show More |
| External Recording Modes | SDI/BNC
DCI 4K (4096 x 2160) |
| Media/Memory Card Slot | Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC |
| Video I/O | 1x BNC (12G-SDI) Output
1x BNC (3G-SDI) Monitor Output 1x HDMI (Unspecified Signal) Output |
| Mobile App Compatible | Yes: iOS Only
App Name: Canon Multi-Camera Control App Functionality: Adjust Settings, Remote Control, View Live Feed |
| Battery Type | Canon BP-AN Series |
Imaging
| Lens Mount | Canon RF |
| Lens Communication | Yes, Cooke /i |
| Sensor Resolution | Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170) |
| Image Sensor | Full-Frame BSI Stacked CMOS |
| Image Stabilization | Digital, 5-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters |
| Capture Type | Stills & Video |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/2000 to 1 Second |
| ISO Sensitivity Range | 100 to 102,400 |
| Shutter Angle | 11.25 to 360° |
| Advertised Dynamic Range | 16 Stops |
Video Capture
| Internal Recording Modes | Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) up to 60.00 fps [552 to 2130 Mb/s] 4368 x 2304 up to 100 fps [293 to 916 Mb/s] 4096 x 2160 up to 120 fps [258 to 993 Mb/s] 2184 x 1152 up to 180 fps [74 to 574 Mb/s] XF-AVC Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps [240 to 1200 Mb/s] 3840 x 2160 up to 120 fps [240 to 1200 Mb/s] 2048 x 2160 up to 180 fps [120 to 300 Mb/s] 1920 x 1080 up to 180 fps [120 to 300 Mb/s] XF-AVC Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps [150 to 250 Mb/s] 3840 x 2160 up to 120 fps [150 to 250 Mb/s] 2048 x 1080 up to 180 fps [25 to 50 Mb/s] 1920 x 1080 up to 180 fps [25 to 50 Mb/s] XF-AVC S Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps [240 to 1200 Mb/s] 3840 x 2160 up to 120 fps [240 to 1200 Mb/s] 2048 x 1080 up to 180 fps [120 to 300 Mb/s] 1920 x 1080 up to 180 fps [120 to 300 Mb/s] XF-AVC S Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps [130 to 250 Mb/s] 3840 x 2160 up to 120 fps [130 to 250 Mb/s] 2048 x 1080 up to 180 fps [50 Mb/s] 1920 x 1080 up to 180 fps [50 Mb/s] XF-AVC S Long GOP 4:2:0 8-Bit 4096 x 2160 up to 180 fps [100 to 150 Mb/s] 3840 x 2160 up to 180 fps [100 to 150 Mb/s] 2048 x 1080 up to 180 fps [35 Mb/s] 1920 x 1080 up to 180 fps [35 Mb/s] XF-HEVC S Long GOP 4:2:2/4:2:0 10-Bit 4096 x 2160 up to 120 fps [100 to 225 Mb/s] 3840 x 2160 up to 120 fps [100 to 225 Mb/s] 2048 x 1080 up to 180 fps [35 to 50 Mb/s] 1920 x 1080 up to 180 fps [35 to 50 Mb/s] |
| External Recording Modes | SDI/BNC
DCI 4K (4096 x 2160) |
| Recording Sensor Crop | Crops an Unspecified Amount When Using Super35 Mode
Crops an Unspecified Amount When Using Super16 Mode |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | Canon Log 2, Canon Log 3 |
| Built-In Microphone | No |
| Audio Recording | Cinema RAW Light: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC: 4-Channel 24-Bit 48 kHz LPCM Audio XF-AVC S, XF-HEVC S: 4-Channel 24-Bit 48 kHz LPCM Audio XF-AVC S, XF-HEVC S: 2-Channel 16-Bit 48 kHz AAC Audio |
| IP Streaming | RTP, RTSP, SRT, UDP
1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s) |
Interface
| Media/Memory Card Slot | Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC |
| Video I/O | 1x BNC (12G-SDI) Output
1x BNC (3G-SDI) Monitor Output 1x HDMI (Unspecified Signal) Output |
| Audio I/O | 2x Mini XLR Input
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x XLR 4-Pin (12VDC) Input |
| Other I/O | 1x USB-C Monitor
1x DIN 1.0/2.3 (Genlock, Return, Sync) 1x DIN 1.0/2.3 (Timecode) 1x RJ45 (XC) Control 1x Hirose 12-Pin (Lens Control) |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) |
| Mobile App Compatible | iOS Only, Canon Multi-Camera Control App
Functionality: Adjust Settings, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) | No |
Focus
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, One-Shot AF |
General
| Battery Type | Canon BP-AN Series |
| Power Consumption | ≤32.5 W |
| Shoe Mount | 1x Intelligent Hot Shoe
1x Intelligent Hot Shoe on Included Handle |
| Accessory Mounting Thread | 1x ARRI/Hirth Rosette |
| Dimensions (W x H x D) | 5.6 x 5.3 x 5.3″ / 142 x 135 x 135 mm
14.2 x 10.8 x 14.3″ / 361 x 274 x 363 mm (With Grip, Handle, Mic Holder, Monitor Attachment) |
| Weight | 3.4 lb / 1.5 kg (Body Only) |
