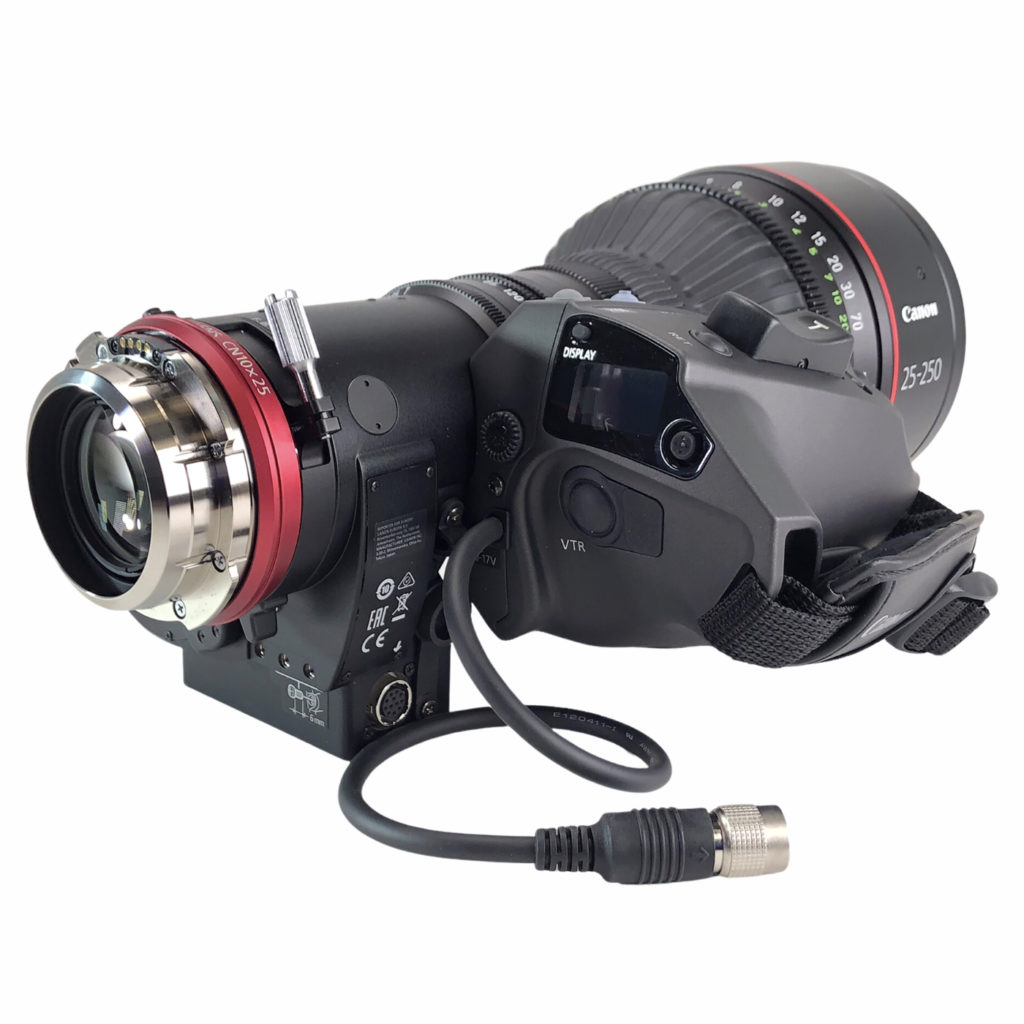

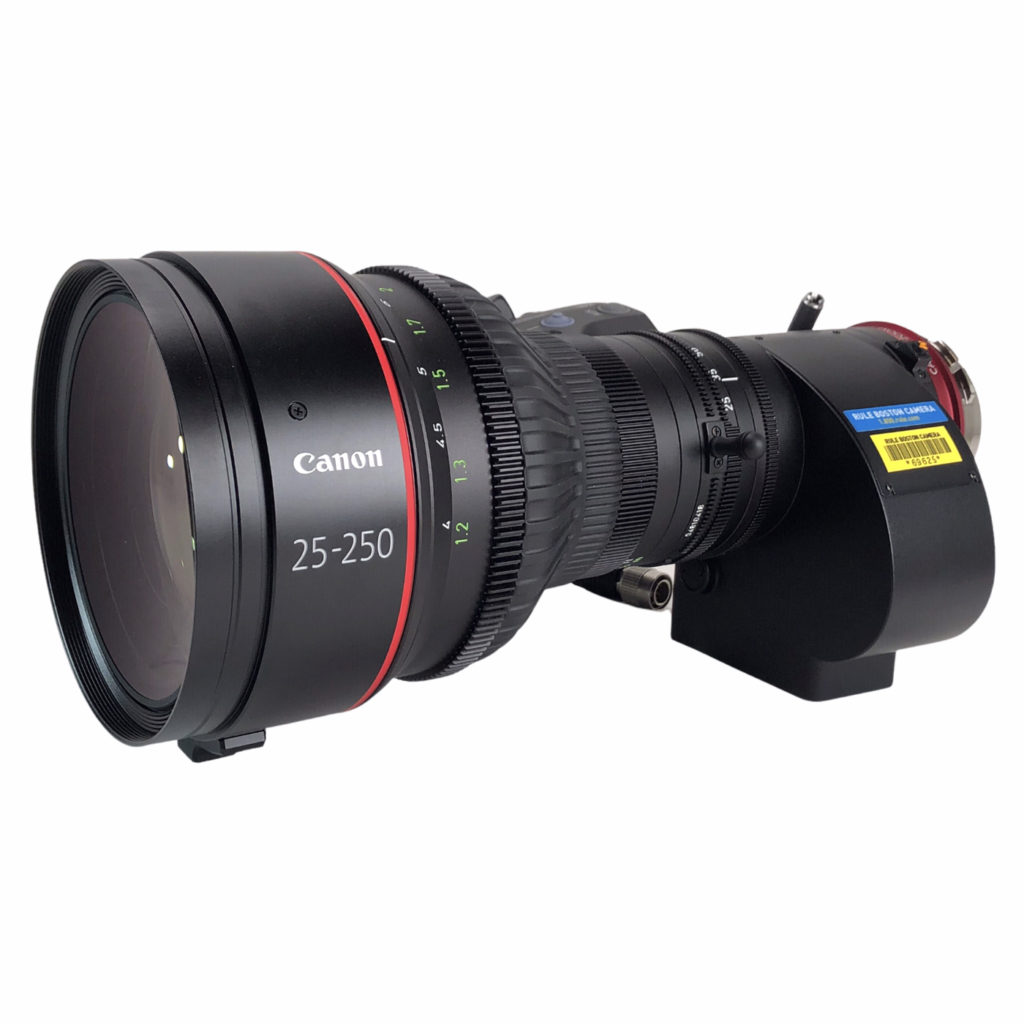

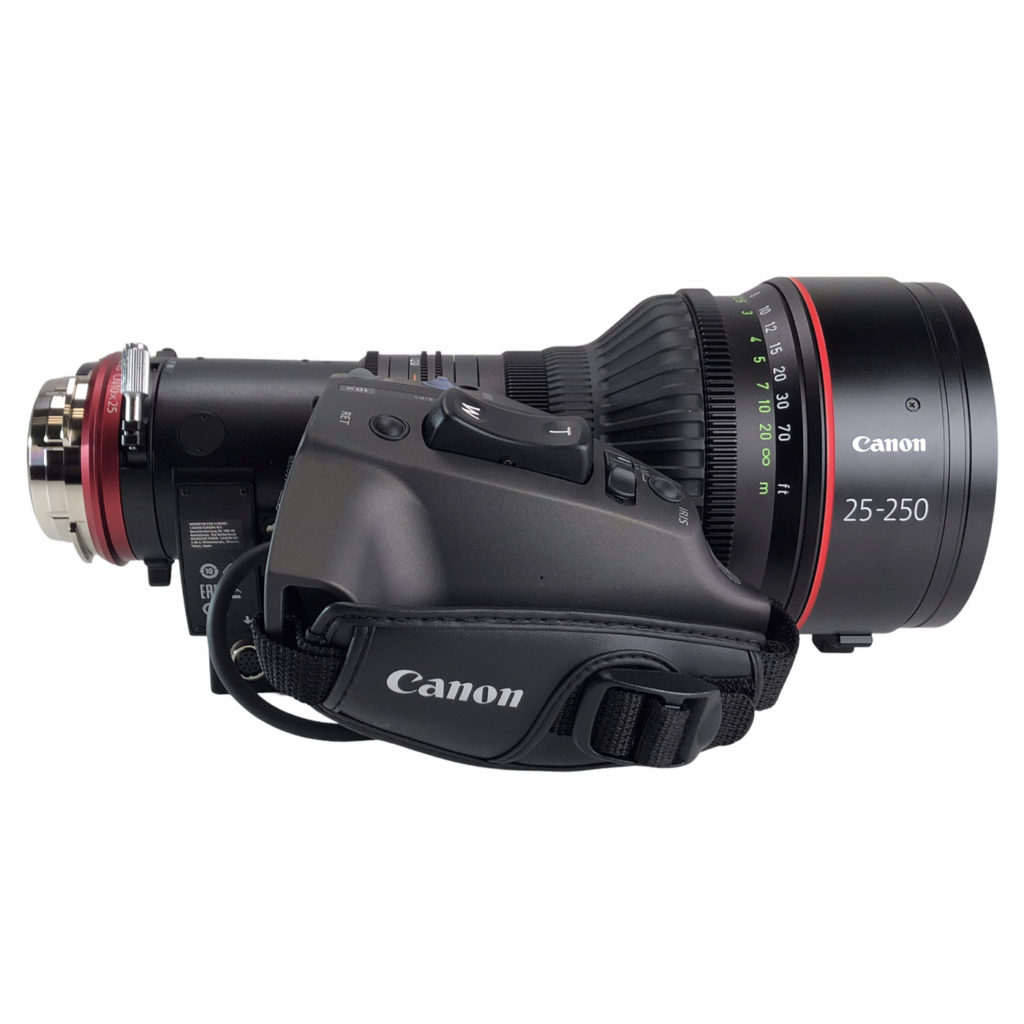

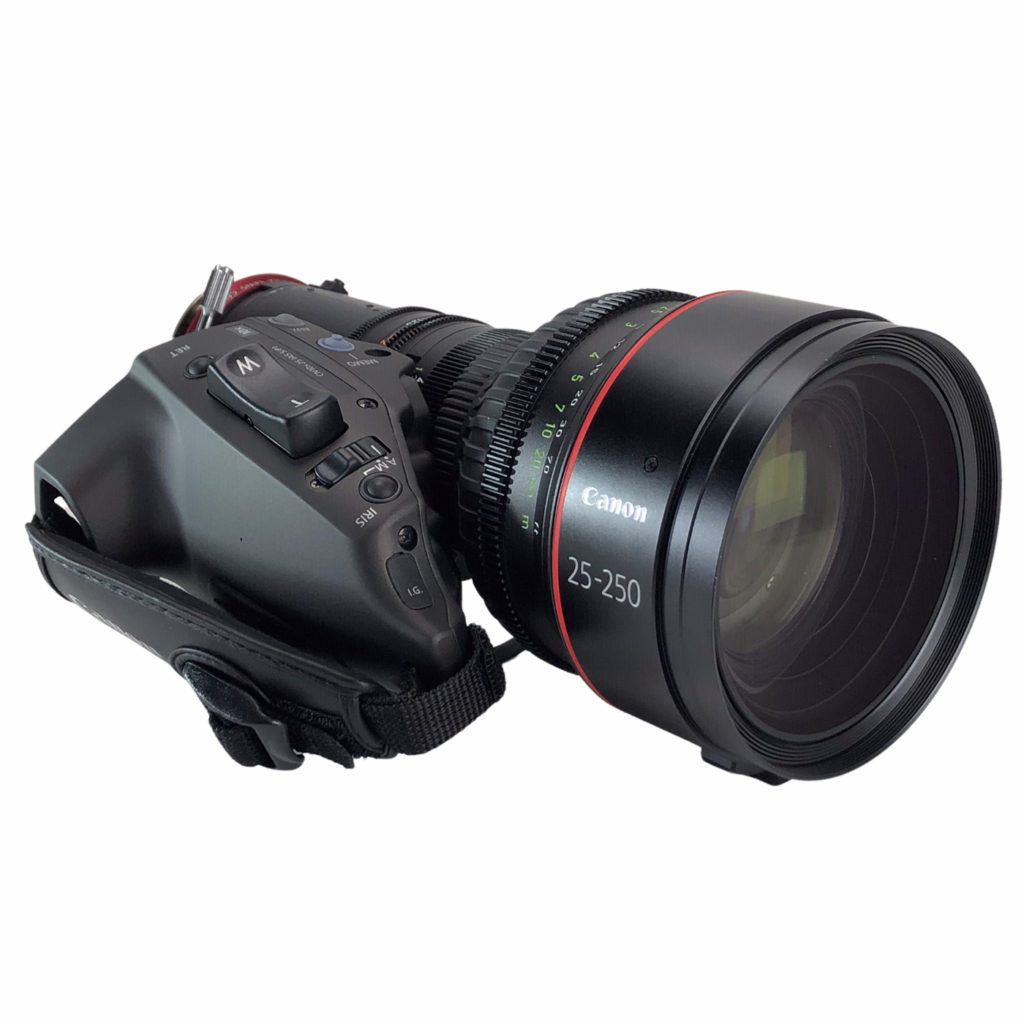

This durable PL mount lens brings 4K optical performance to Super 35-sized sensors. Measuring approximately 11″ long and weighing only 6.7 lb, this compact, lightweight lens is suitable for a variety of productions such as narrative, EFP/ENG or run-and-gun documentary.

Lens Design

• Covers Super 35 sensors with 4K applications
• 25 to 250mm focal range, extends to 375mm with 10x zoom at 1.5x magnification
• T2.95 to T3.95 aperture
• Parfocal design to maintain focus during zoom
• Minimized focus breathing
• LCD screen for features and settings
• Focus ring rotates 180°
• 16-bit high-resolution encoder for virtual studio systems
• 11-blade iris
• Compact and lightweight design

Servo Control

• Servo control capability for all zoom, focus, and iris
• Compatible with broadcast-style servo lens controllers such as Canon ZSD-300D and FPD-400D

Functionality

• Image stabilization
• Remote control of zoom, focus, and iris via camera
• REC start/stop from ZSG-C10 Grip
• Peripheral illumination correction
• Chromatic aberration correction
• T-stop/F-stop number display select
• Flange-back Adjustment and Macro Function

• Focal Length: 25 to 250mm
• Lens Mount: PL Mount
• Format: Super35/APS-C
• Maximum T-Stop: T3.95
• Minimum T-Stop: T2.95
• Diagonal Angle of View: Super35: 53.9 to 30°,  Super35: 5.8 to 3.1°
• Minimum Focus Distance: From : 4′ / 1.2 m
• Iris Blades: 11
• Front Diameter: 114 mm
• Zoom Ratio: 10x
• Connectivity: 1 x 12-Pin (Canon Lens) Control, Power
• Dimensions (W x H): 7.6 x 5.2″ / 193.04 x 132.08 mm
• Length: 11.1″ / 28.19 cm
• Weight: 6.7 lb / 3.04 kg
