Blackmagic Atem Mini Pro

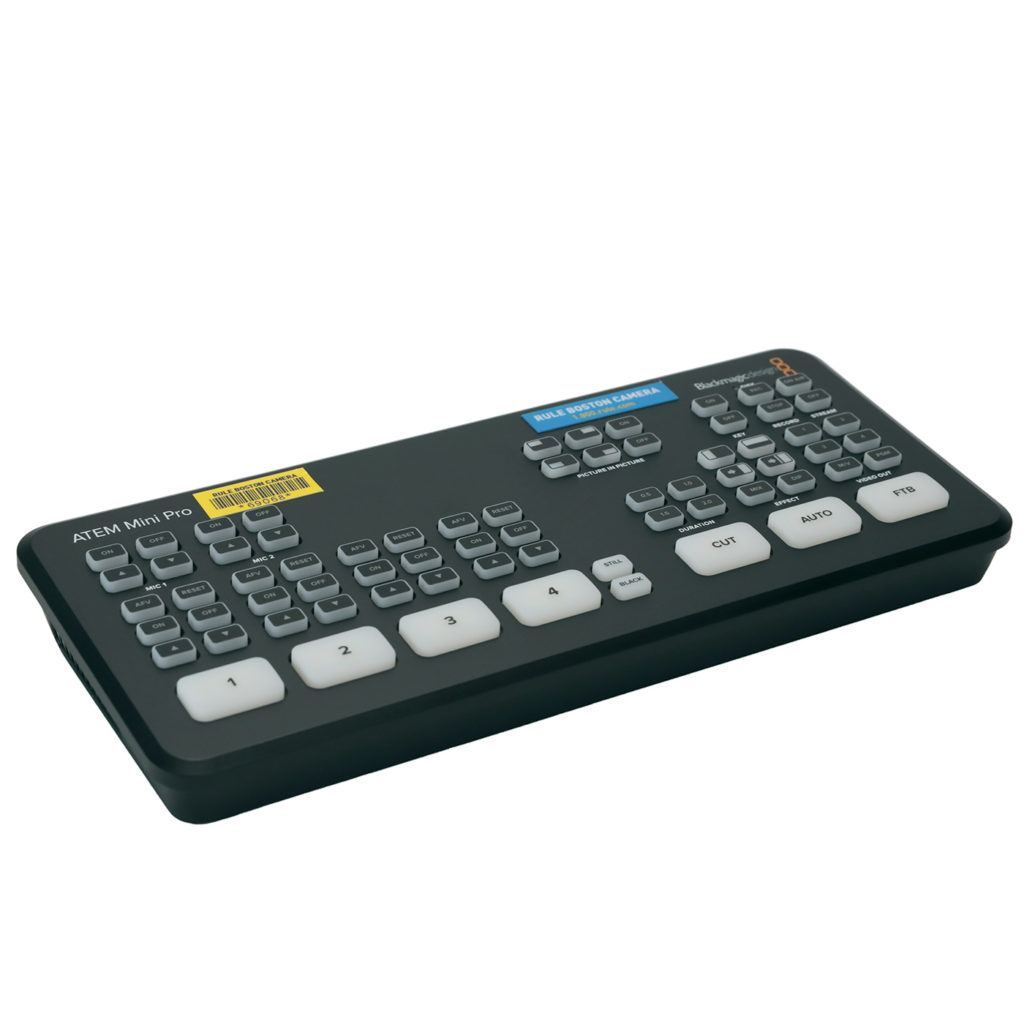

The ATEM Mini Pro from Blackmagic Design is a four-input live production switcher, with an integrated control panel designed for multi-camera live streaming to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras.
Download ManualThe Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to utilize as your broadcast sources.

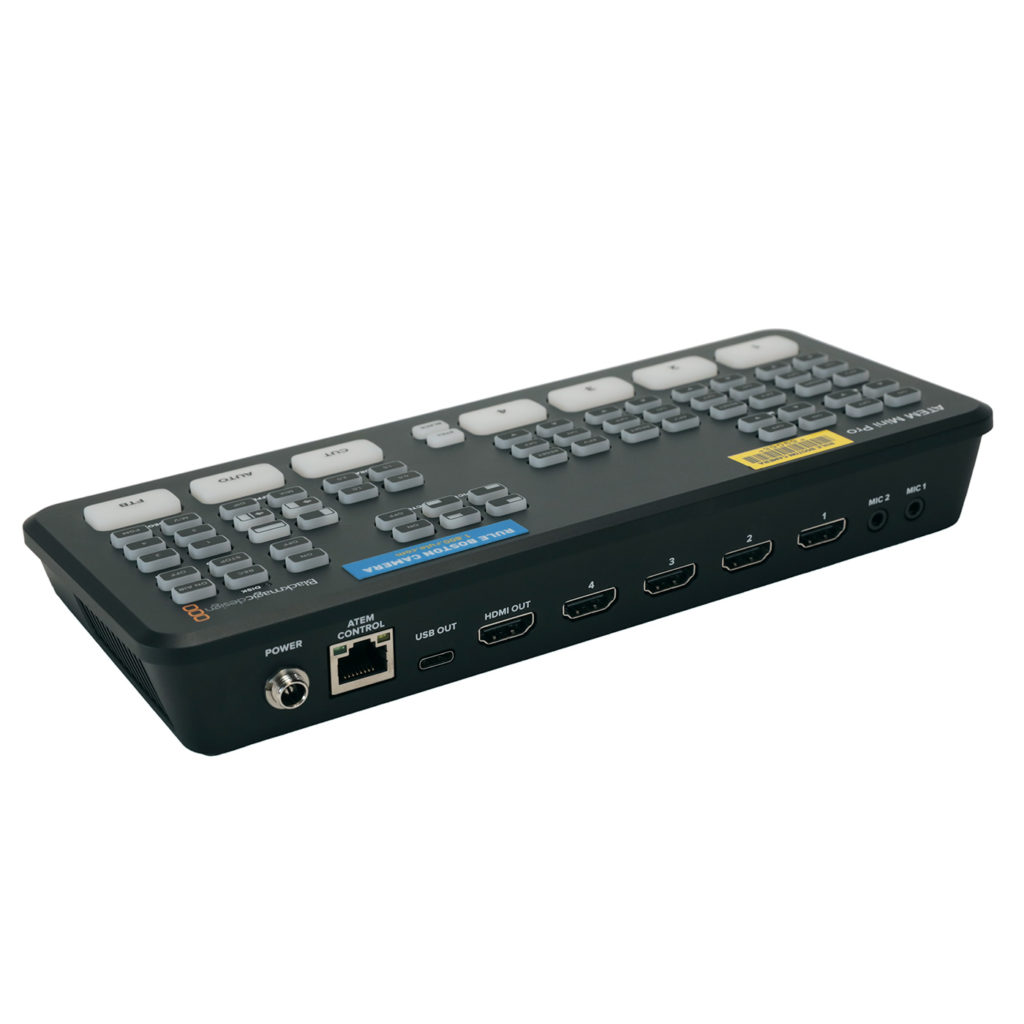

The ATEM Mini Pro has the same rear-panel setup as the previous model with four HDMI inputs available on the rear of the chassis which can input up to 1080p HD video. There is also an HDMI output for a projector or multiview monitoring, a USB Type-C output as for recording HD video to a computer, and an RJ45 10/100/1000 Ethernet port for direct live streaming as well as system management, remote control, and upgrades. You can adjust frame rate depending on the quality of your stream, and there is no need for additional streaming software because the Pro includes a built-in hardware encoder.
The updated ATEM Software Control Panel is used for control and configuration of the ATEM Mini Pro via USB or Ethernet, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. The built-in color control panel has the same configuration of DaVinci Resolve, eliminating any learning curve. Advanced features include the ability for engineers to upload an XML configuration file to make it easier to change all your settings at once.
Mix Effects
| Available M/E Layers | 5 M/E |
| Effect Types | 1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
| Downstream Keys | 1x Chroma, DVE
2x Luma |
| Audio Mixing | 2-Channel Mixing |
Processing
| Switching Type | Pushbutton |
Input
| Number of Video Input Sources | 4 |
| Video Input Connectors | 4x HDMI Female |
| Input Video Format | HDMI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
| Audio Input Connectors | 2x 1/8″ / 3.5 mm TRS Stereo Analog Female |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
Output
| Video Output Channels | 1 |
| Video Output Connectors | 1x HDMI |
| Output Video Format | HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Multiview Output | Yes |
| Monitor Output | 1x HDMI |
Connectivity
| Other I/O | 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
1 x USB Type-C Firmware, Control Input/Output |
Hardware
| OS Compatibility | macOS 10.14 or Later
Windows 10 |
Power
| Power Connector | 1 x Barrel (12 VDC) Input |
| Power Consumption | 36 W |
Environmental
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 0 to 90% |
General
| Dimensions | 9.35 x 4.07 x 1.38″ / 23.75 x 10.34 x 3.51 cm |
| Weight | 19.4 oz / 550 g |
- ATEM Mini Pro
- AC Power Supply
- USB A to C Cable
- USB C to C Cable
- (2) HDMI A to A Cables
- USB C to HDMI Adapter
- Mini Displayport to HDMI A Adapter
