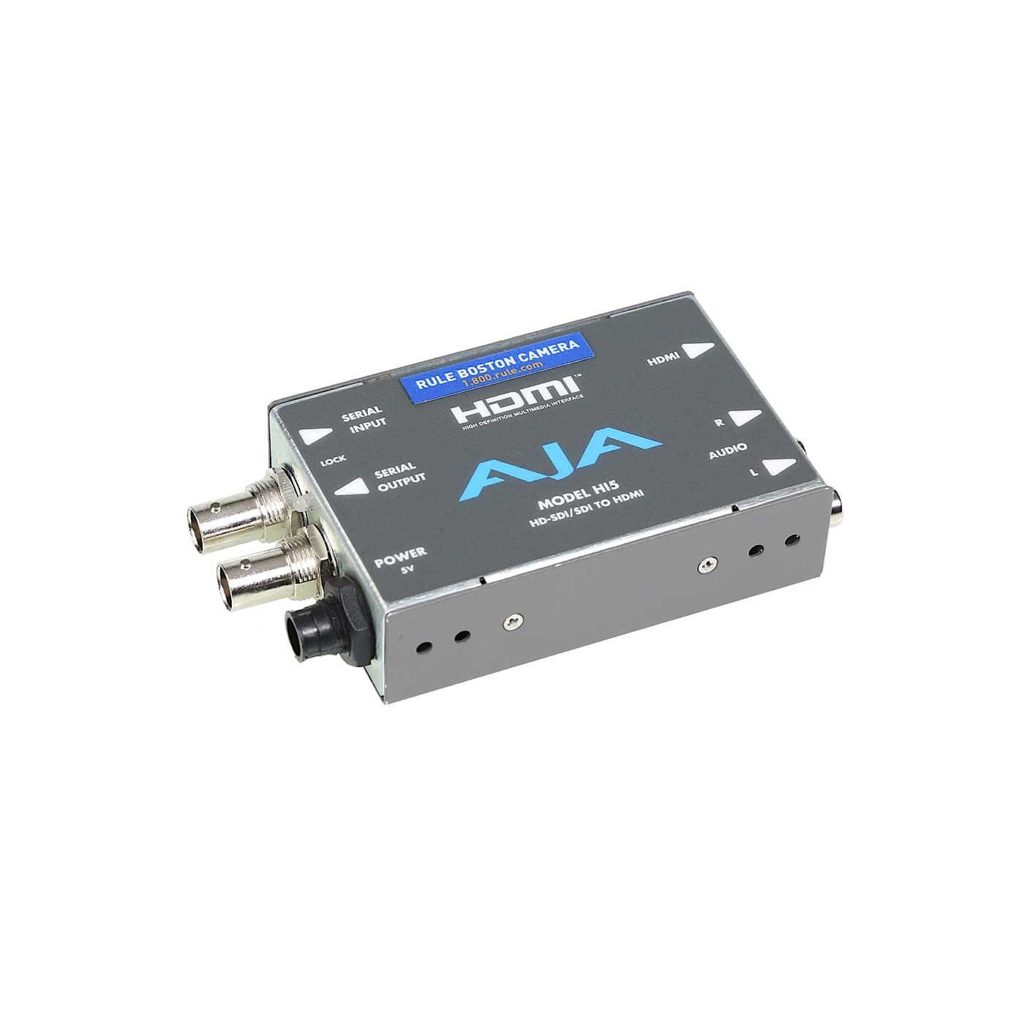

The Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SD/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2-Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SD/HD-SDI output useful for connecting additional equipment, or for “daisy chaining” multiple monitors to the same SD-HD-SDI source.

• SD/HD-SDI to HDMI
• Full HDMI support including 10-bit video and 8 channels of embedded audio
• Additional 2-Channel RCA jack audio output
• Equalized looping SD/HD-SDI output

Video Formats
(HD) 1080i 50, 59.94, 60
(HD) 1080p 23.98, 24, 25, 29.97, 30
(HD) 720p 50, 59.94, 60
(SD) 625i, 525i

Input
SMPTE-259/274/292/296 SD/HD-SDI, 1 x BNC

Outputs
HDMI with embedded audio, 24-bit (selectable by internal jumper: 2 or 8-Channels)
Audio, 2-Channel RCA style outputs at -10dBu (nominal), Channel 1 and 2
1 Looping SD/HD-SDI output of the SDI input (75 ohm, unterminated)

HDMI
Standard Type A connector
Video:
8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)
Audio:
24-bit, with 2 or 8 embedded channels (selectable by internal jumper)

HDCP
The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SD/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.

Size (w x d x h)
4.6″ x 2.4″ x 1″ (117mm x 61mm x 25mm)

Power
+5VDC Regulated, 3 Watts, power supply required

AC Power Supply
