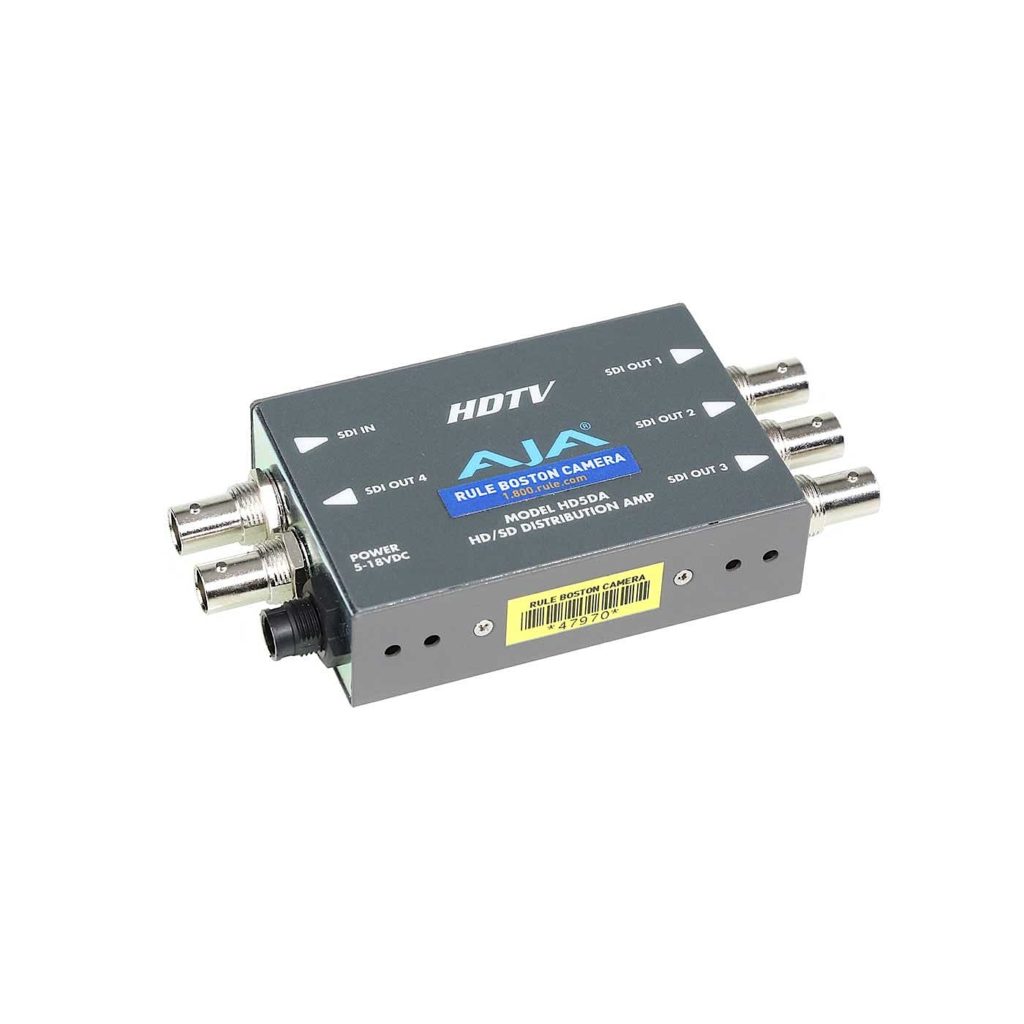

The HD5DA is a miniature, low cost, 1×4 HD-SDI/SDI distribution amplifier/repeater. Featuring four separately buffered HD-SDI/SDI outputs, the HD5DA provides automatic input cable equalization to 100 meters and automatically adapts to 143, 177, 270, 360 Mb, and 1.5 Gb.

• Compact HD-SDI/SDI Distribution
• Four Separately Buffered HD-SDI/SDI Outputs
• Auto Equalization
• Acts As Low-Cost Repeater
• Automatic Multi-Standard 143/177/270 Mb, 1.5Gb
• Miniature Size

Formats:
1.5 Gb, 143, 177, 270, 360 Mb, Auto Select

Inputs:
1 HD-SDI, SDI (SMPTE 292/296), 1 x BNC

Outputs:
4 HD-SDI, SDI, 4 x BNC
Equalizing

Return Loss:
>15dB – 270 Mhz (Input and Output)

Size (w x d x h):
5.8″ x 2.4″ x 1.0″ (131mm x 61mm x 25mm)

Power:
5VDC Regulated, 2.5 watts, power supply required, included with purchase

AC Power Supply
