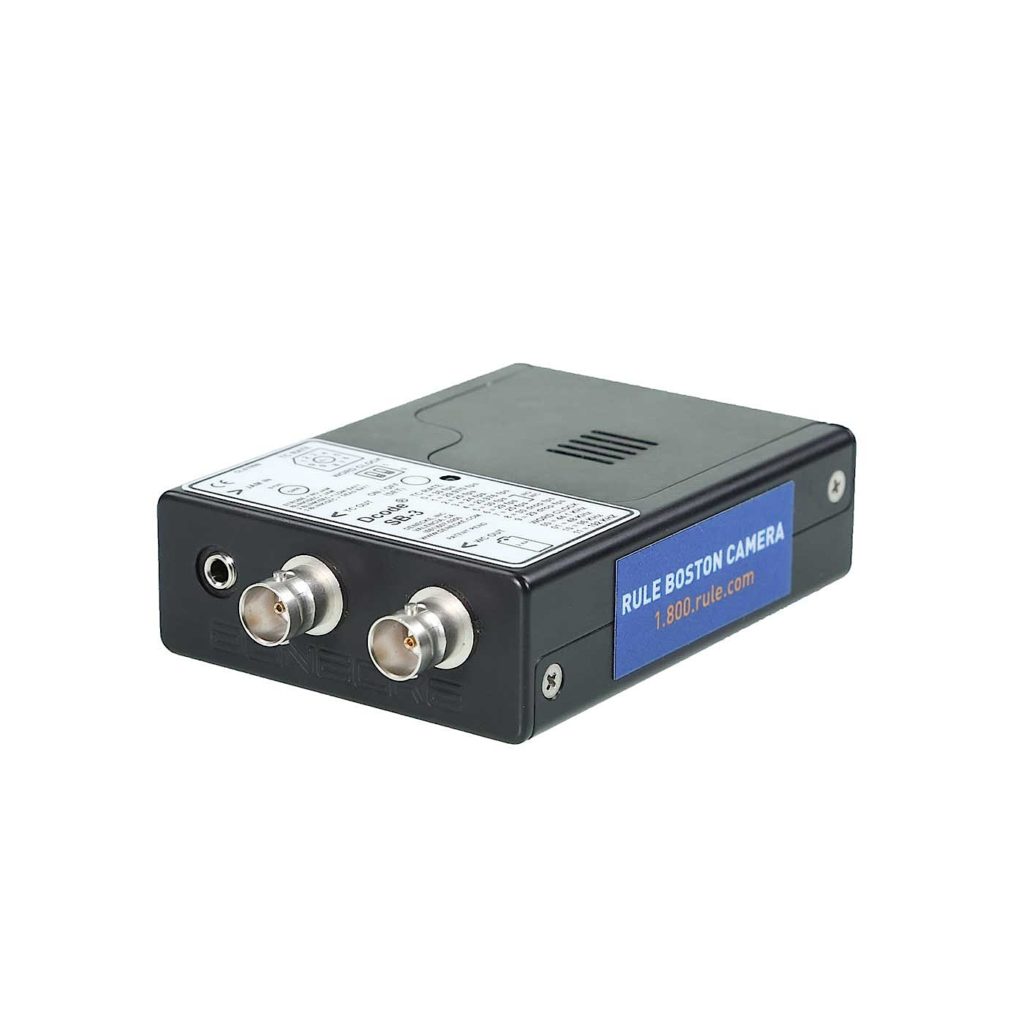

Denecke SB3 Syncbox Time Code Generator

The Dcode SB-3 is designed to replace the Dcode SB-2A in the Denecke line of Time Code Generators. The SB-3 reads, generates and jams to all the standard frame rates including 23.976 for High Definition shoots. The outputs include Time Code and Word Clock. The Temperature Compensated Crystal Oscillator (TCXO) ensures low drift and very low Word Clock jitter.

  • Generates Word Clock in 44.1 KHz, 48 KHz, 96 KHz and 192 KHz, as well as all standard time code rates.
  • Very low Word Clock jitter locked to the high stability crystal (TCXO).
  • Cross jam regardless of incoming frame rates.
  • Simple to set up.
  • Generates all common SMPTE Time Code frame rates.
  • Low and Dead battery warning.
  • Jam from an external time code source or set it internally and use as a stand alone generator.
  • Runs on 2 AA batteries.
  • Continuously jams to new code so there is no need to power down the unit to re-jam.
  • Input: -15dB @ 4.7K; 1/8” mini phone jack
  • TCXO Crystal: +/- 1PPM @ -30º to +75º C
  • Battery Power: 2 Alkaline “AA” Batteries
  • Battery Life: 20+ Hours
  • Size: 3.75” x 2.79” x 1.06”
  • Weight: .50 pounds (with batteries)
  • External Power: N/A
