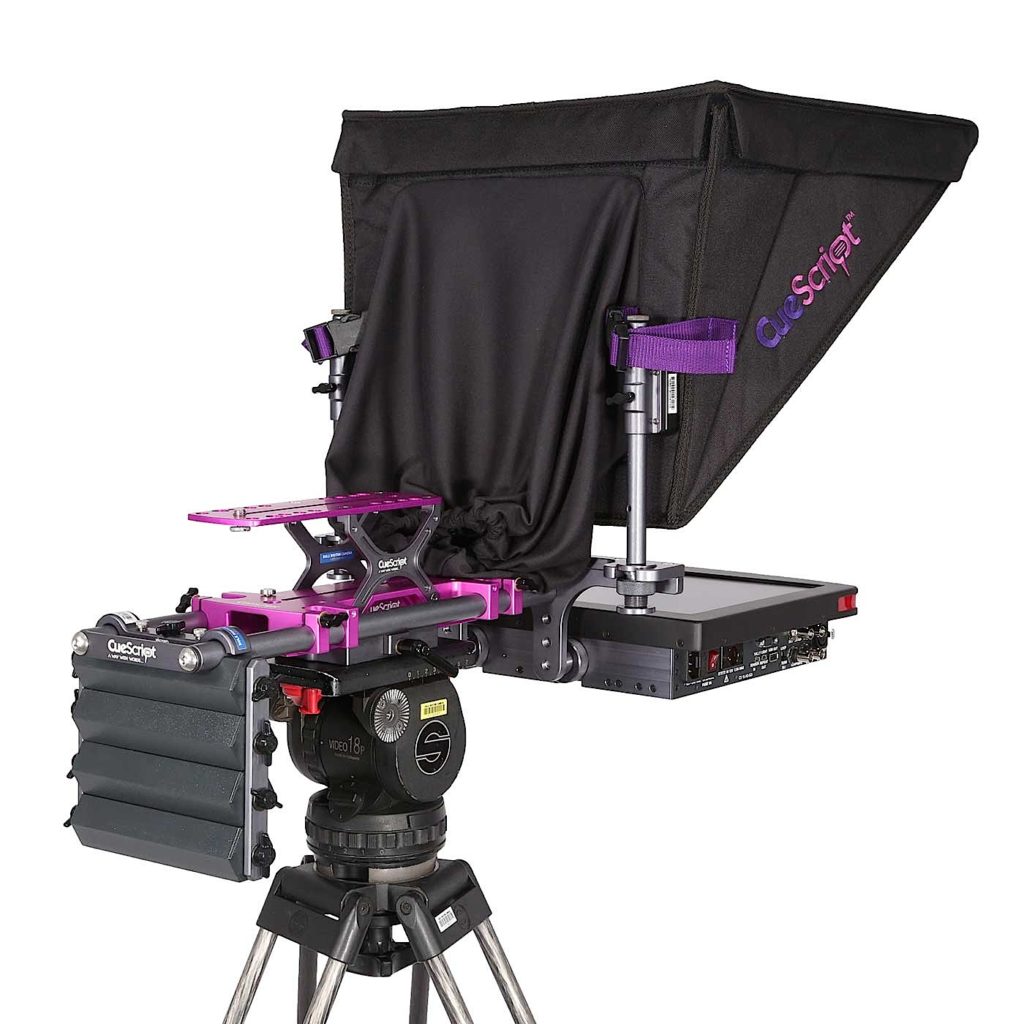

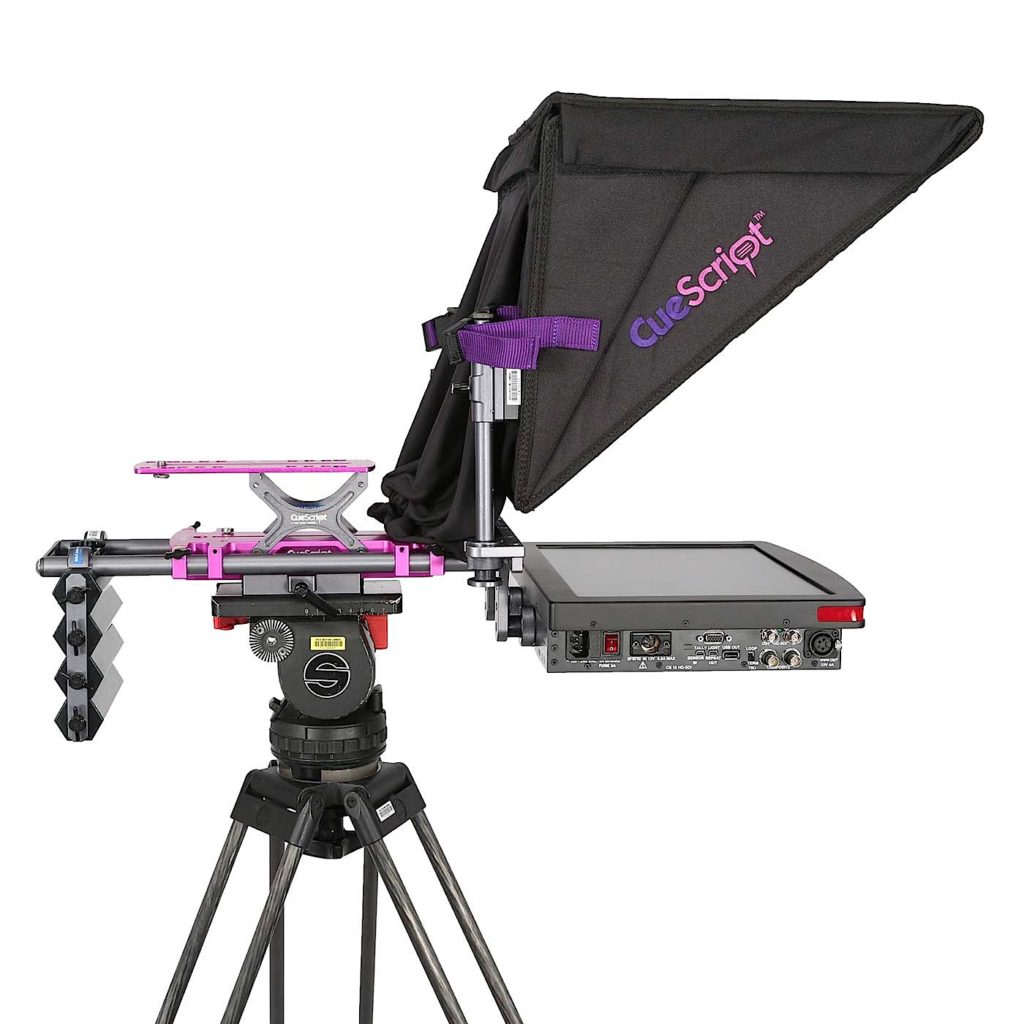

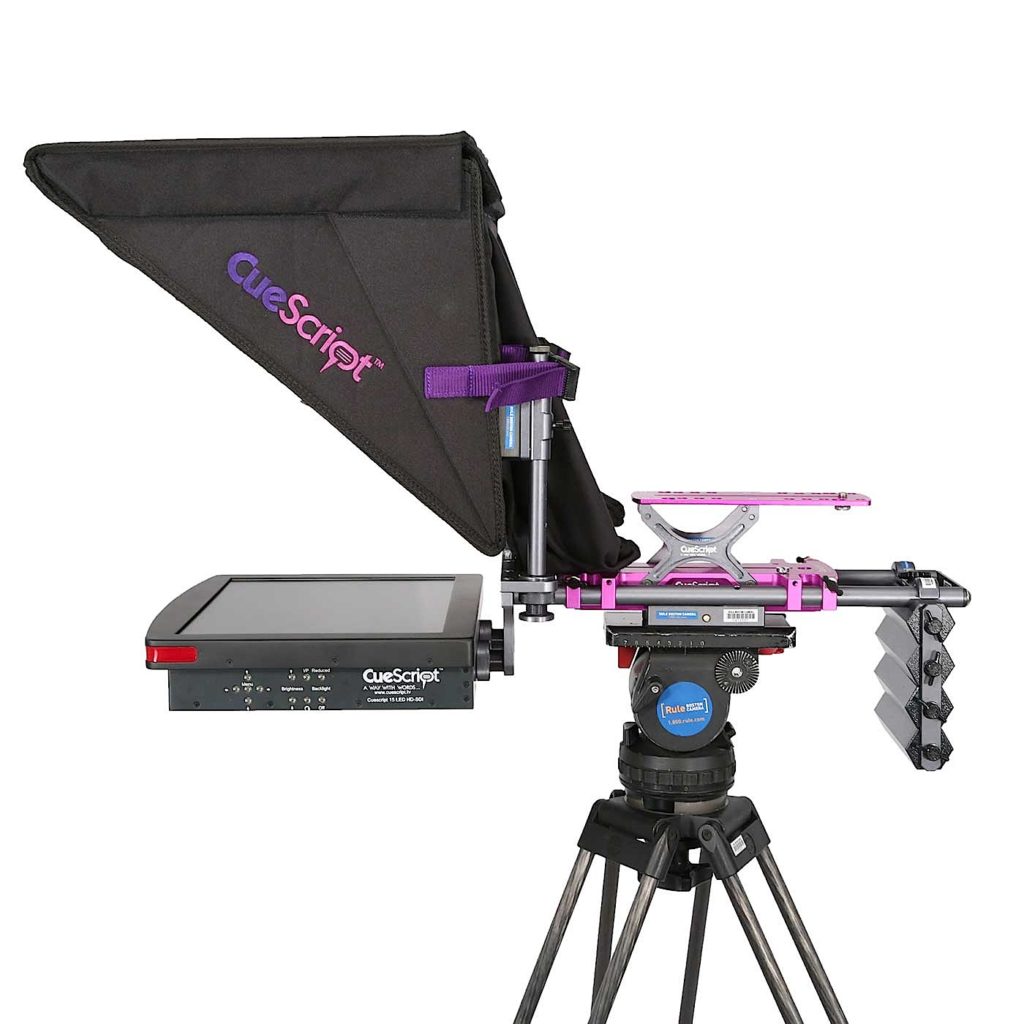

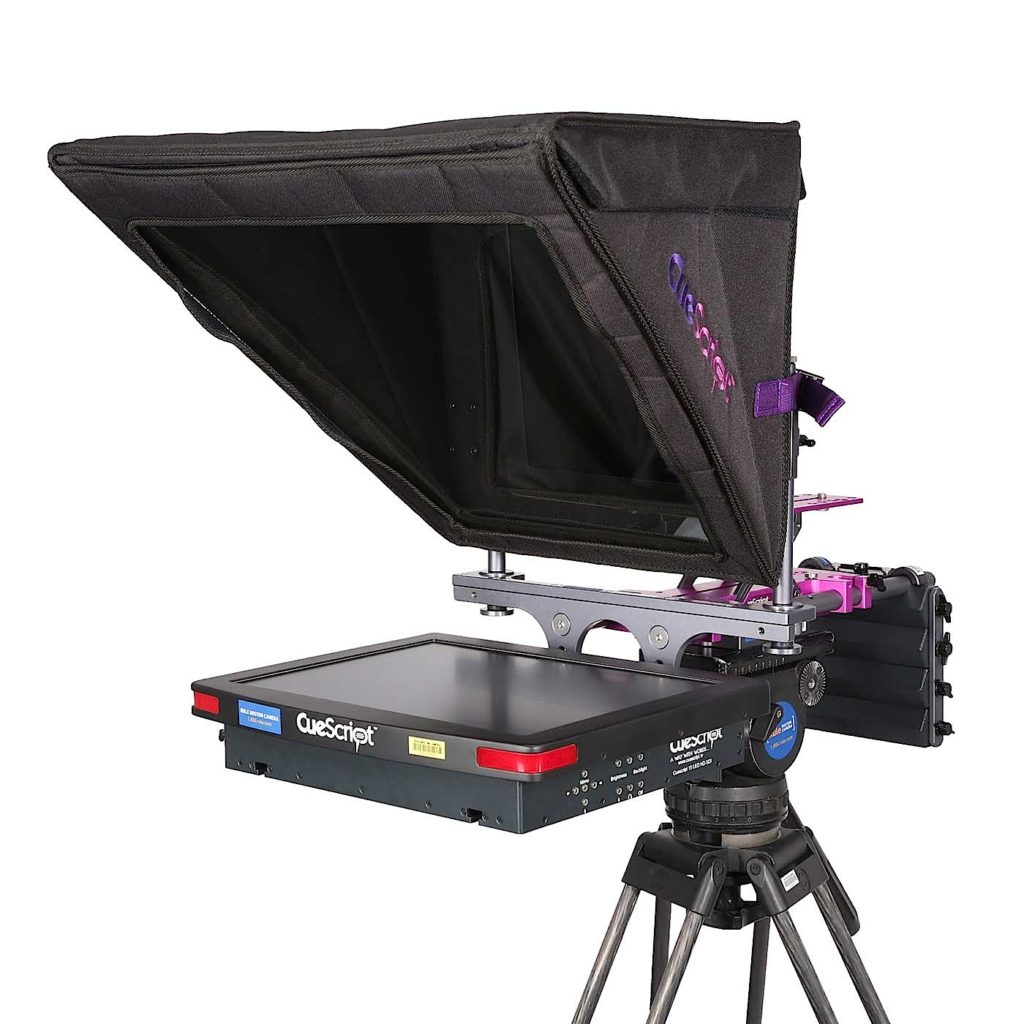

Cue Script CS 17

Rent for $275.00 per day

SKU: R-CST-CSM17 Categories: , ,

Description

The lightweight, low-profile design and integrated mounting system make the 17″ CueScript ideal for studio use.

Features

• Unique Cue-locking system requires no tools
• Low energy consumption and 3 modes of power to start-up
• High brightness LED screen with a high-contrast ratio and standard built-in HDSDI
• Built-in mounting T-rail system offers the user the ability to quickly and easily add accessories underneath the prompter
• High spec power supplies built into the monitors allow them to run cold to help avoid any component failure from the heat
• Uniquely rounded lens hood helps eliminate lens flare
• Counter balance weight can be added to the rear of the purple mount
• Adjustment of the weight is simple and configurable by adding or reducing specially designed weights
• Dual curved cue light window system enhances the ability for all studio personnel to see the active studio prompter
• Dimmable 180 degree cue light system
• Wide array of input and output connections

Specifications

CSM17
Brightness: 1700 nits
Contrast Ratio: 1000
Viewing Angle: 170×160
Back light saver: User selectable timing
Reverse/Rotation: 4 way picture orientation

DIMENSIONS
Front to Back: 13.5” (344mm)
Right to Left: 15.57” (395mm)
Depth: 2.67” (68mm)
Monitor only Weight: 11.4lbs/5.2kg
Complete weight with Large Hood, Glass & Mount Purple: 23.8lbs/10.8kg

VIDEO
Autosensing:
PAL/NTSC/VGA/HD-HD-SDI
Composite 75 Ohms
Looping video output
HD-SDI – Input
HD-SDI – Output
Controls: Illuminated LED push-buttons with adjustable brightness

POWER INPUTS & CONNECTORS
Internal PSU:
IEC Wide Range 100-264 AC & 150VDC
XLR 4pin 12v DC 36 Watts

POWER CONSUMPTION
3 Mode adjustable power input
Low – 26 Watts
Medium – 30 Watts
High – 38 Watts

ADDITIONAL CONNECTORS
Tally DC Out: USB 5V
Tally Sensor:
Mini USB Tally Sensor
5-12 Volt Tally input
USB – DC Out: Mini USB 5V & Tally repeat
4 Pin XLR DC Out: 12V 36 Watts

CERTIFICATIONS
CE, TUV, FCC, C-Tick, PSE, RoHs

MOUNTING
Integrated ‘On-Air’ Talent Monitor mounting rails.
CueLock mounting system built in.
– See more at: http://www.cuescript.tv/product-profile.php?pid=31#sthash.rHwqsN8P.dpuf

Download Manual

Includes

For Multi-day Rentals: Call for Rate
