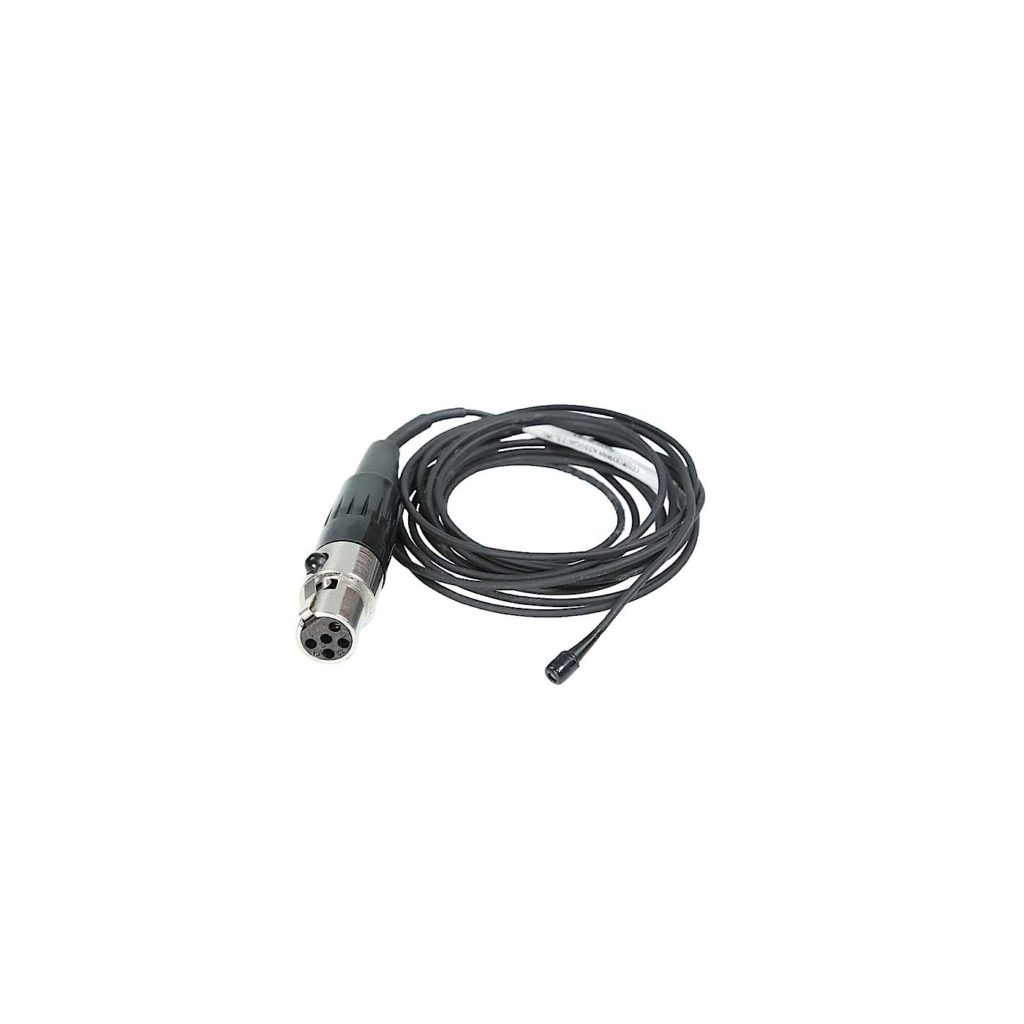

Countryman B6

Only one tenth of an inch in diameter, the B6 is the smallest lavalier in the world and outperforms microphones many times its size. With exceptionally low handling noise and rugged construction, the B6 is the ideal choice for theater, broadcast, churches, and general lavalier applications.

Frequency Response: 20 Hz to 20 kHz
Operating Current: 500 uA
Operating Voltage: 1 to 2 Volts
Power Supply Voltage:
+3V with 2.7 kOhm load
+5V with 6.8 kOhm load
+9V with 15 kOhm load
Weight: 0.07 oz (2 g)
Sensitivity:
W4 (gray band): 16.0 mV/Pascal
W5 (red band): 7.0 mV/Pascal
W6 (blue band): 2.0 mV/Pascal
Equivalent Acoustic Noise:
W4: 24 dBA
W5: 29 dBA
W6: 39 dBA
Overload Sound Level:
W4: 120 dB SPL
W5: 130 dBA SPL
W6: 140 dBA SPL
Cable Length:
5 Feet

Countryman B6
