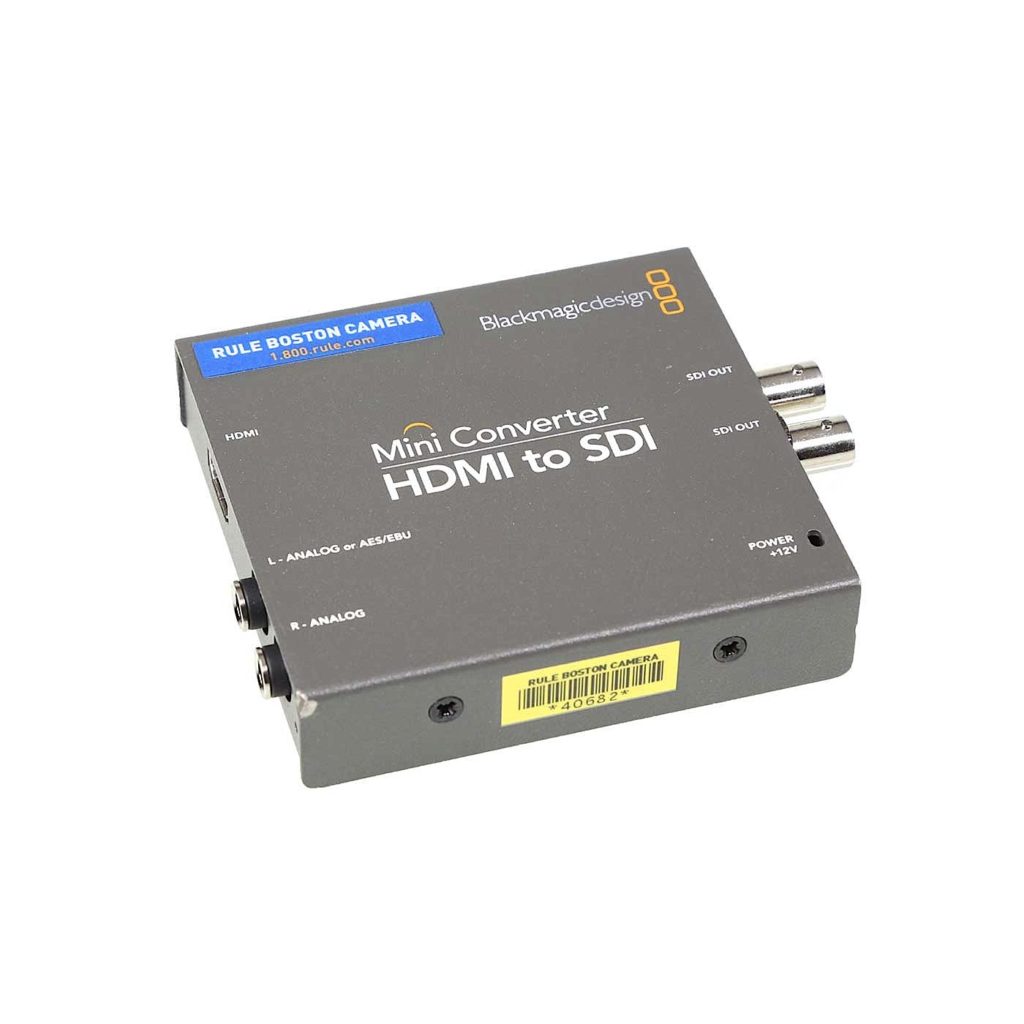

Mini Converter HDMI to SDI is ideal for converting from HDMI devices to SDI video with the choice to embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Now you can add SDI outputs to cameras with HDMI connections, or if your computer supports HDMI compatibility via DVI to HDMI adapters, then you can add SDI outputs to computers. Also features a built in hardware down converter to connect HDMI video to SD-SDI equipment.

Connections
SDI Video Output:
Automatically matches the SD, HD and 3G-SDI HDMI video input.
Analog Audio:
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio:
2 channels of professional balanced digital with standard 1/4 inch jack connections.
HDMI:
HDMI type A in
Multi Rate Support:
Auto detection of SD, HD or 3G-SDI.
Updates and Configuration:
USB
Reclocking:
Yes

Standards
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24,
1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60.
SDI Video Rates
SDI video connections are switchable between SD, HD, 3G-SDI
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
HDMI Format Support
625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50,
1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,
1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
HDMI Color Space
YUV and RGB
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R
BT.656 and ITU-R BT.601.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD or 3G-SDI.
HDMI Color Precision
4:2:2 and 4:4:4
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright
ownership before capture or distribution of content.

Format Conversion
SD Down Conversion

AC Power Supply
