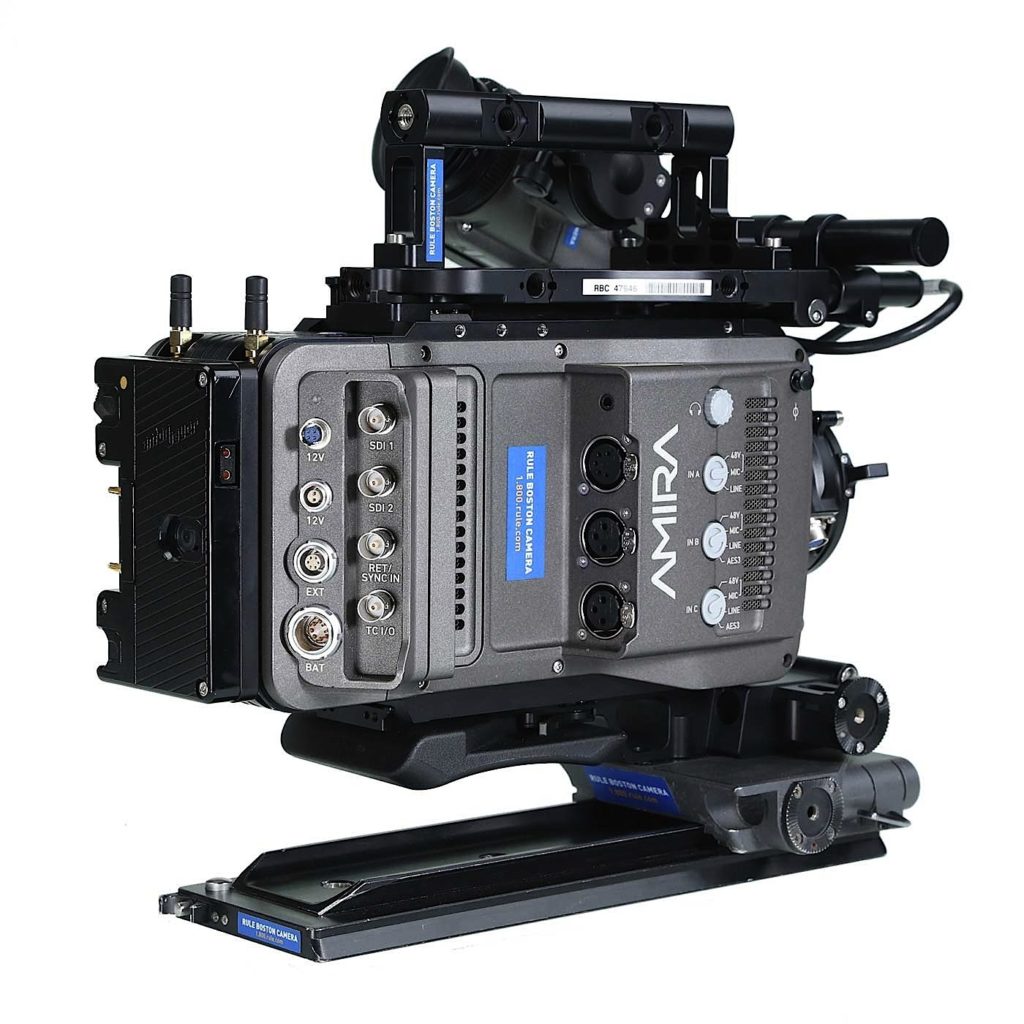

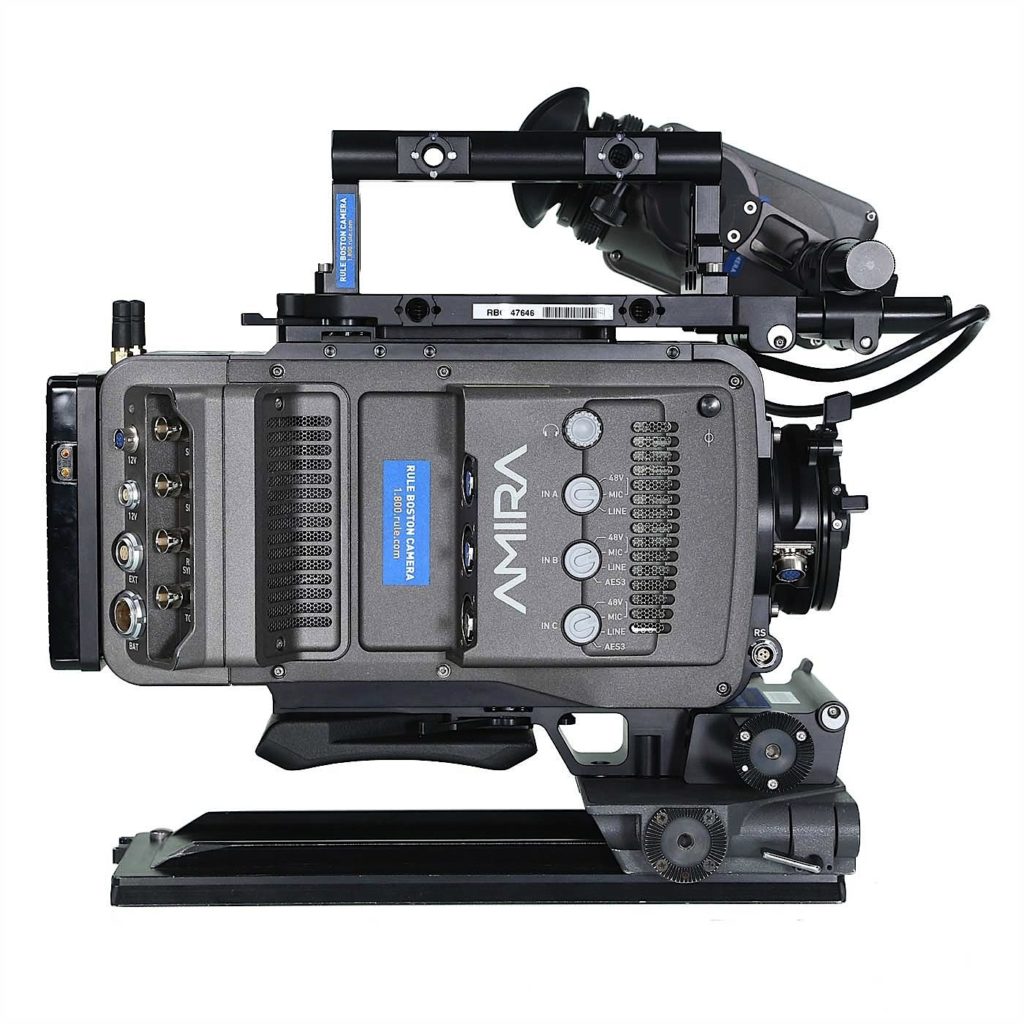

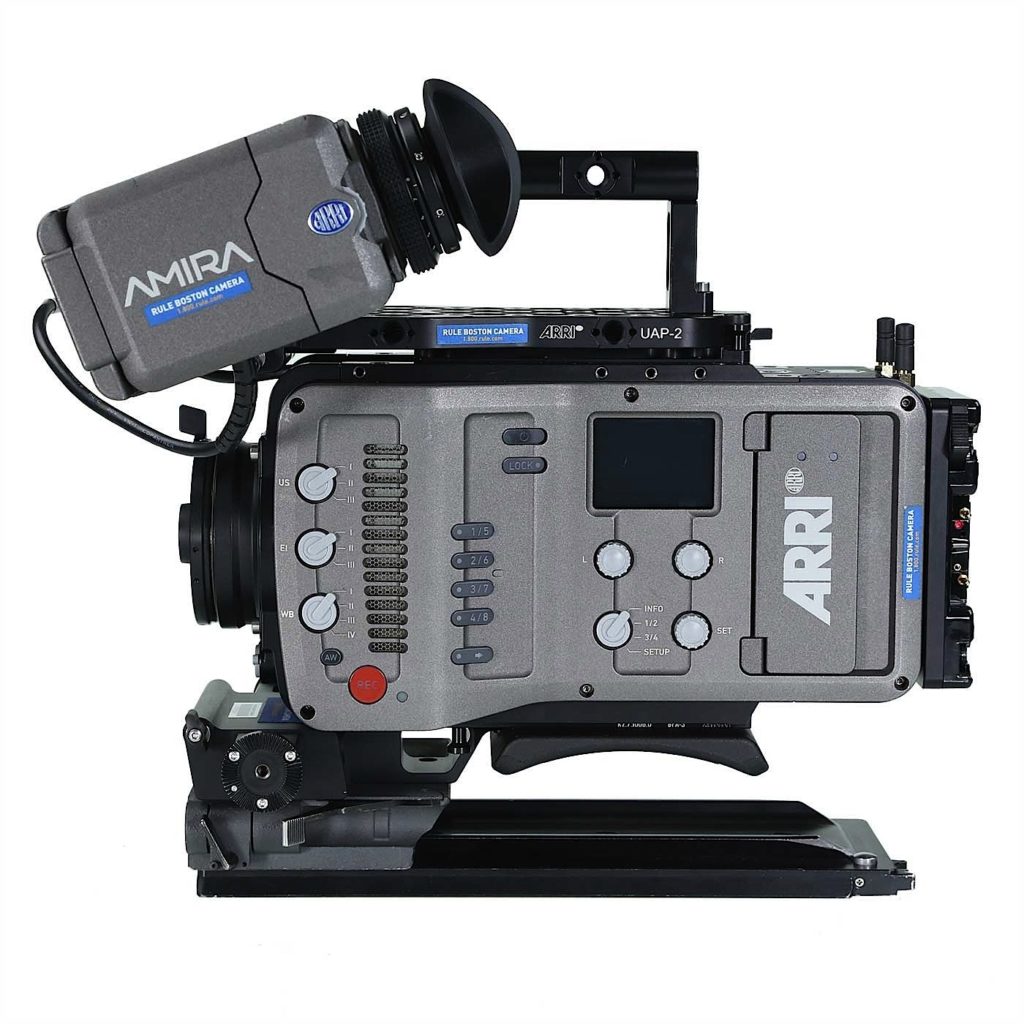

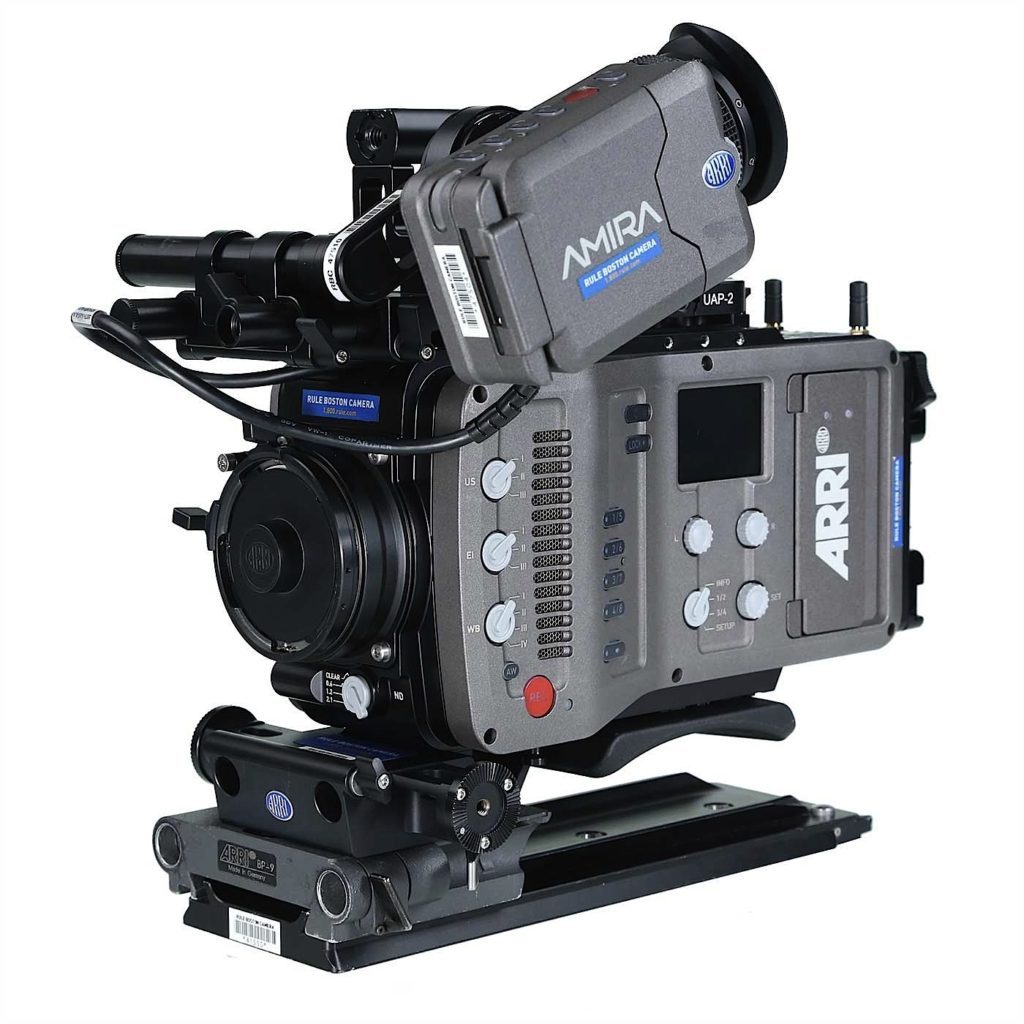

The Arri Amira is a versatile documentary-style camera with a Super 35mm size sensor, modular accessories and a simple yet powerful feature set. This camera excels whether used in an on-the-go, single operator setting or built up for the studio. The 2K sensor matches with almost all other Arri digital cinema cameras and boasts 14+ stops of dynamic range and exceptional color and skin tone reproduction.

The Amira records in Log C or Rec. 709 in ProRes codecs onto Cfast 2.0 media. Frame rates up to 200fps can be recorded at full 2K resolution.

• Same 35 mm sized sensor as ALEXA
• Dynamic range of 14+ stops
• Natural colors and skin tones
• HD 1080/2K; Log C/Rec 709
• ProRes up to 4444 on CFast 2.0 cards
• Up to 200 fps – full image size
• Ergonomic for the single operator or studio set up
• Internal ND filters (0.6/1.2/2.1)
• OLED eyepiece and fold-away LCD monitor
• Multi-channel audio – easy-access controls
• Preloaded/custom-built 3D LUTs and Looks
• Solid PL lens mount

• Sensor Type: 35mm format ARRI ALEV III CMOS (28.17×18.13)
• Sensor Pixel Count: 3414 x 2198: 3200×1800 (4K UHD) 2880 x 1620 (HD), 2868 x 1612 (2K), for monitoring with surround area: 3168 x 1772 (HD), 3154×1764 (2K)
• Lens Mounts: PL mount
• Shutter: Electronic shutter, 5.0° to 356.0°
• Exposure Index: EI 160 to EI 3200 (EI 800 base sensitivity)
• Exposure Latitude: 14+ stops over the entire sensitivity range from EI 160 to EI 3200
• Audio Recording: 4 channels, 24 bit PCM, 48 kHz
• Integrated motorized ND Filters: FSND 0.6, 1.2, 2.1
• Sound Level: < 20 dB(A)
• Weight: ~ 4.1 kg/9.2 lbs (camera body with PL Lens mount)
• Viewfinder: AMIRA Multi Viewfinder MVF-1 (OLED and LCD)
• Outputs Video : 2x HD-SDI out 1.5G, 3G and 6G: uncompressed HD/UHD video with embedded audio and metadata
• Outputs Audio : 3,5mm headphone jack, Bluetooth audio
• Outputs Power: Hirose 12pin (for ENG type zoom lenses); 12V: D-tab, Hirose 4pin, Lemo 2pin; 24V: RS 3pin
• Inputs: Genlock, HD-SDI, Timecode (In and Output), all BNC
• Other Interfaces: USB 2.0, Ethernet LAN RJ-45 for camera remote control.
• Recording Media: CFast 2.0 memory cards
• Recording Formats: HD 1920×1080 (interlaced&progressive), 4K UHD 3840×2160
• Recording Frame rates: 0,75 – 100 Fps (progressive); 0,75 – 60 Fps with 4K UHD
• Recording Codecs: Rec 709 or Log C images using ProRes LT, 422, 422HQ or 444 codecs
• Import of custom 3D LUTs
• Focus and exposure control: Peaking, Zebra, False color

Camera Body
PL LDS Lens Mount w/Port Cap
MVF-1 Electronic Viewfinder
UAP-2 Top Plate
CCH-1 Center Handle
2x 4” 15mm AL Rods
VAB-1 VF Attachment Bracket
VF Mounting Bracket
Sliding Top Handle w/VF Mount
BPA-3 Bridge Plate Adapter
BP-9 Bridge Plate
12” Dovetail Plate
WPA-1 VCT Wedge Plate Adapter
QRP-1 VCT Quick Release Plate
(2) 15mm Steel Rods
Tiny USB Stick
AB Gold Mount Sandwich Plate
24V AC Power Supply w/AC Cable
(2) KC50-S Power Cables
10’ XLR3 24V Power Cable
Short Viewfinder Cable
Short Hirose Lens Cable
XLR5 – 2x XLR3 Audio Cable
MHB-2 Microphone Adapter Bracket
VFA-2 Viewfinder Adapter Bracket
Cfast Card Reader
USB 3.0 Cable
2mm Allen Driver | 3mm Allen Driver
Manual
Screen Protector
